This is a set of T158 spare tracks designed for the 1/16 scale Heng Long M1A2 Abrams RC tank. The track pin holes are designed with a 2.5mm diameter, allowing you to easily hang these tracks onto the tank's turret storage baskets. Naturally, they can also be used as stowage on other 1/16 scale models.
PLEASE NOTE: These are static spare tracks intended strictly as a decorative element (stowage). They are NOT functional tracks and cannot be used on the tank's actual suspension.
- Design Features & Assembly

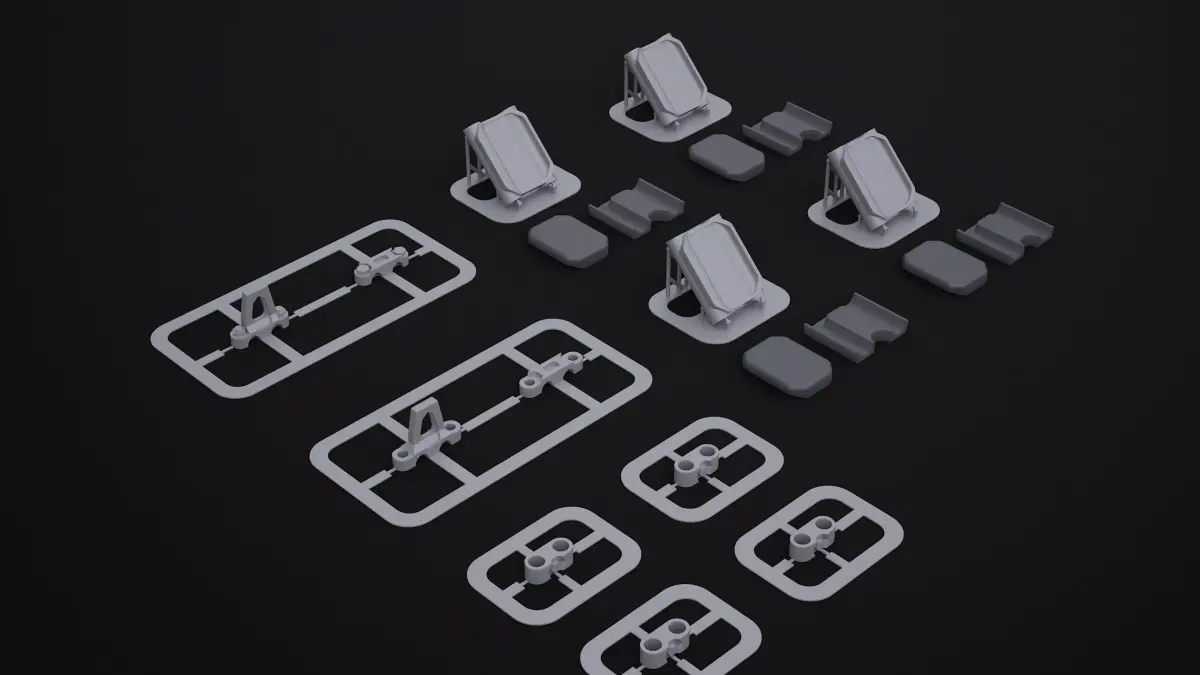

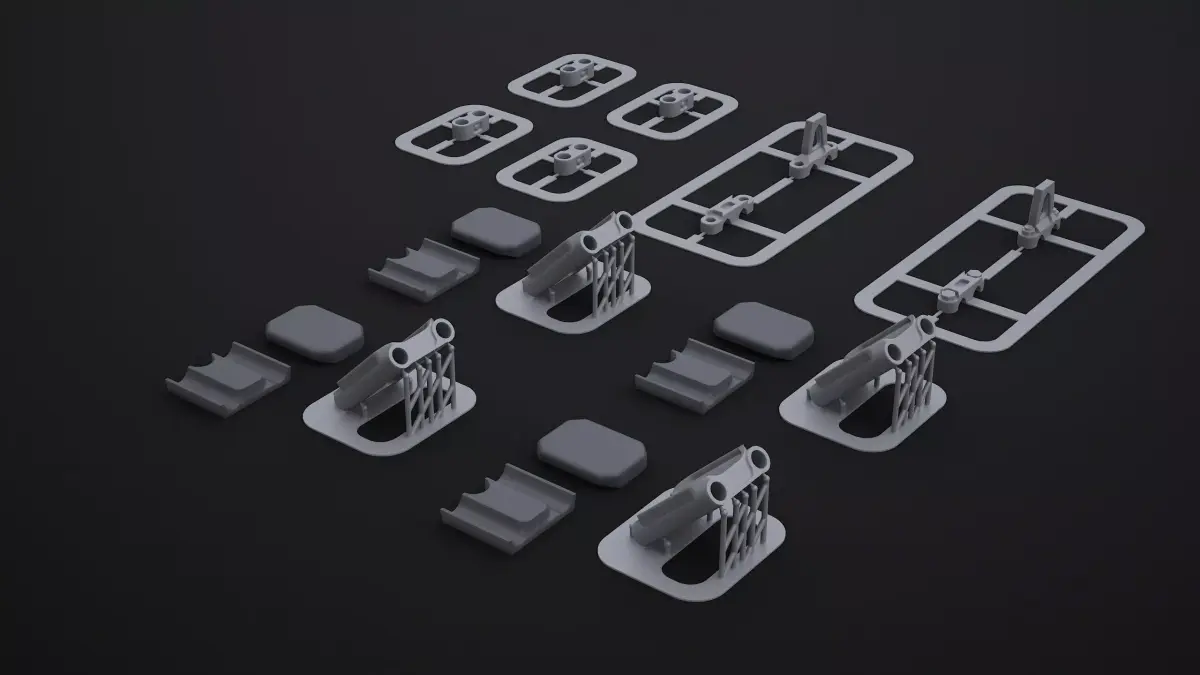

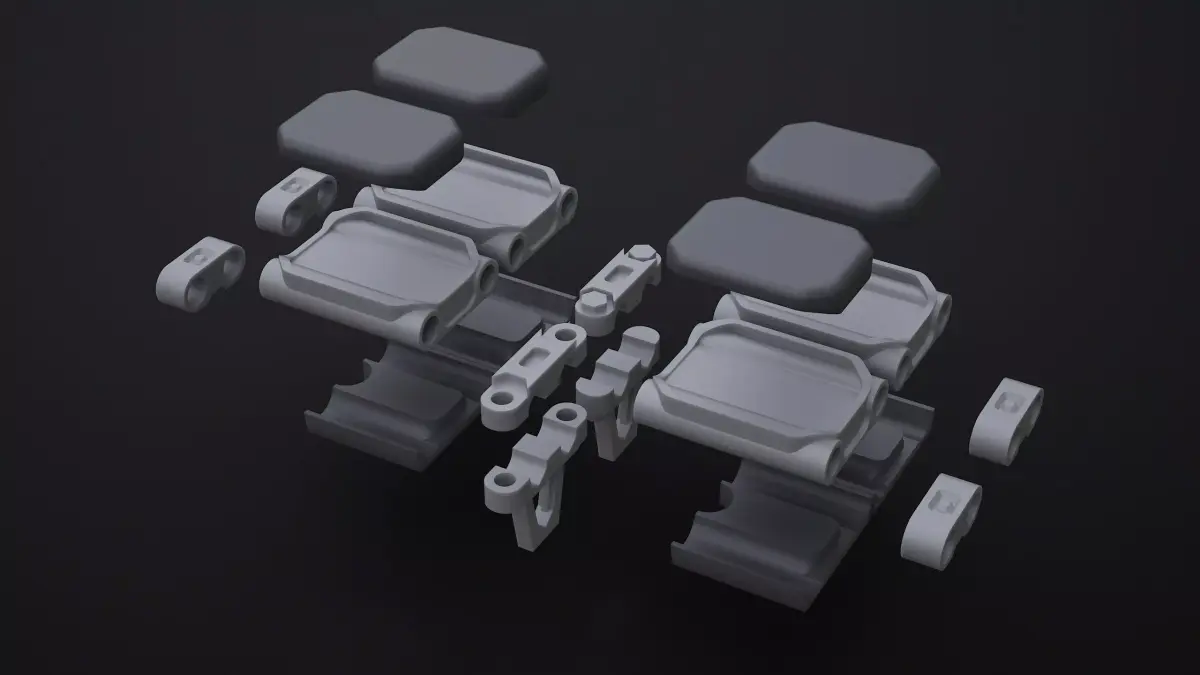

The product includes two versions of the center guide part:
- A version with holes for M1.4 screws.
- A solid version without holes.
A quick note from the designer: The version with screw holes was originally intended for securely clamping onto the turret basket wire. However, to be completely honest, M1.4 screws and nuts proved to be a bit too tiny to handle easily in practice :) So, I ended up using the screws simply as alignment pins and secured the two halves of the center guide together with model glue.
Additional Hardware Required:To assemble the tracks, you will need the following materials:
- 3 or 4 metal tubes (2mm diameter)
- 2x M1.4 screws and 2x M1.4 nuts
- Model glue
Printing DetailsThe model is optimized for FDM printing using a 0.2mm nozzle to ensure proper tolerances and fine details.
Test Print Setup: Bambu Lab P1S | 0.2mm nozzle | PLA filament.
Note: The printed tracks shown in the photos have undergone some light post-process sanding.
Available File Formats:
- .X_T (CAD)
- Plasticity
- .blend
- .fbx
- .obj
- .stl
BLEND (Blender, filesize: 2.11 MB), OBJ (OBJ, filesize: 943 KB), FBX (Autodesk FBX, filesize: 1.65 MB), OTHER (Other, filesize: 1.35 MB), X_T (Parasolid, filesize: 1.13 MB), STL (Stereolithography, filesize: 1.24 MB)
