As seen in the Mandalorian and Grogu movie and the Top hit TV show The Mandalorian! This is seen all over the town of Nevarro and of course Mando and Grogus house. Looks so cool. Print is small or print it large. I have cut this up to be printed at 48inches (4feet) in 200m sections. I will most likely be releasing this as laser files and different cuts in the future. Keep checking back for more Goodness!
Mandalorian Nevarro Window Bars 3D Print STL File:
This listing includes digital files only; no physical items will be shipped.STL Files: Ensure you have access to a 3D printer or 3D printing service.Due to the digital nature of the product, refunds or exchanges are not available.

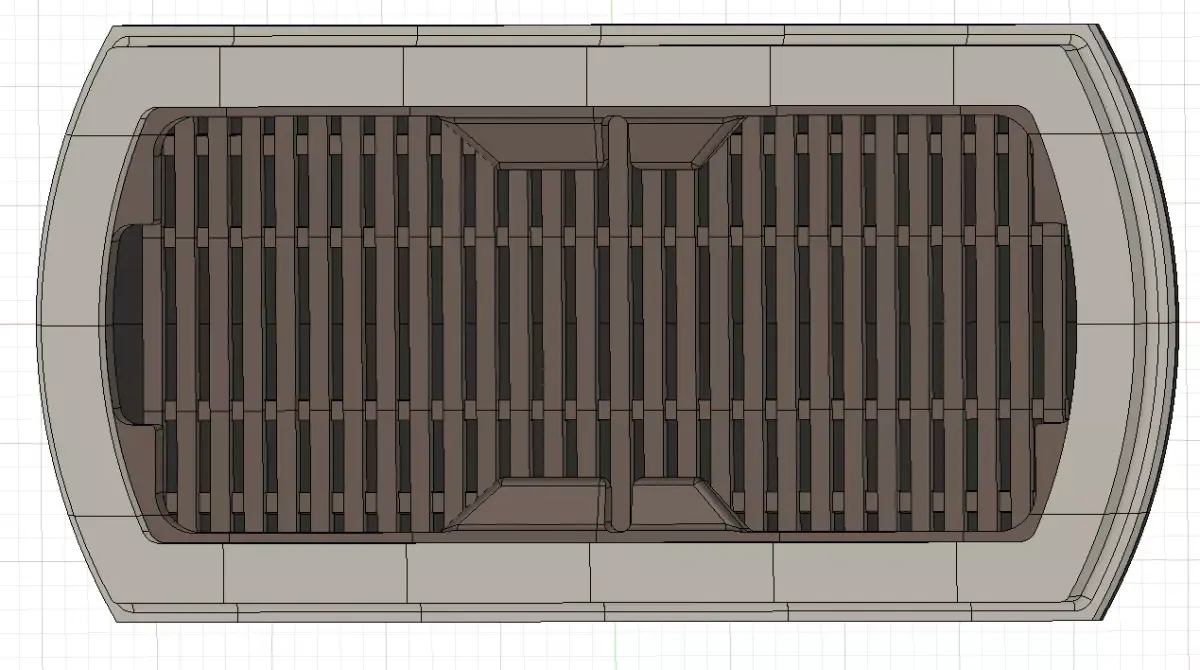

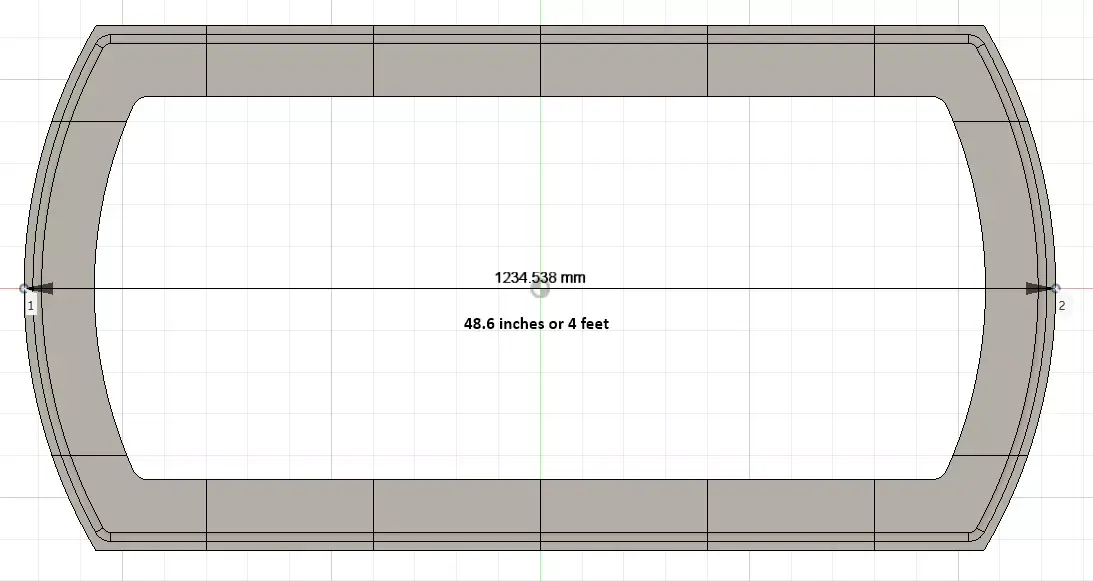

Dimensions (see pics):Fully assembled cut up version: 48inches (4 feet long) printed in 200mm sections with pins Small Printbed - approx. 202.54mm wide x 119.4mm tall x 19mm deepBut you can scale it to your printer bed size!
Items Needed (some are affiliate links):
QTY 1 - Bob Smith Superglue or equivalent
Assembly:
- Print out all parts.
- Do a Dry Run / Test Fit before doing anything.
- Small version:
- place OuterFrame face down
- place InnerFrame inside the Outerframe with the nice side down - place aside
- 28 Vertical pieces necessary
- 2 Horizontal longs necessary
- 2 Horizontal shorts necessary
- Layout the Vertical Rungs (Vertically) with cutout section up
- Lay the Horizonal-Rungs-Long on the Top and Bottom Cuts of the Vertical rungs-make sure that the angled ends are facing down
- Lay the smaller Horizontal-Rungs in the middle cutout sections.
- Use the Spacer tool to space them out correctly. (Glue when ready and let dry)
- Grab the Outer and Inner Frame pieces and place the completed bar section into it.
- Make sure the angled feet go into the slots.
- Glue it all together when ready.
- Do what you wish with the BlackBacking. Use this to mount to wall or screw as backing.
Large Cut Version: (see pictures to help you) - Using the files within the 48inch-4Feet-Cut folder - Build everything together in the designated folders. - Using the numbers to place them together - 28 Vertical pieces necessary - 2 Horizontal longs necessary - 2 Horizontal shorts necessary - Using the pictures provided in listing - Put all pieces together using the numbers. - Make sure to pin before gluing together. - Once each section is built you can refer to the Small version instructions.
PROTIP's:
- Paint and let dry before handling.
- Do a Dry Run / Test Fit before doing anything.
- Do not over tighten the screws.
Enjoy!
Please let me know of any issues.
Whitey!
Photo Credit: Sorry I do not remember where I got the pictures so if you own them please let me know and I will post your name/and/or company. Thanks!
Join My Patreon for over 200 Awesome STL-DXF-SVG files and counting:Ask my Patrons and they will tell you that I am very active.$5 Tier and up get a Etsy 20% off Discount CodePatreon = WhiteysWickedWorkshop
STL (Stereolithography, filesize: 1.89 MB), PNG (PNG, filesize: 1.89 MB), OTHER (Other, filesize: 5.55 MB)
