Roots Blower Rotary Lobe Compressor – Full 3D CAD ModelThis is a highly detailed SolidWorks 3D model of a Roots Type Rotary Lobe Blower Compressor — a positive displacement machine widely used in industrial pneumatic systems, wastewater treatment, CNC vacuum systems, and supercharger applications.The model showcases a complete mechanical assembly including the twin lobe gear mechanism, flanged inlet/outlet ports, cooling fins, bolted casing, and all internal components — fully modeled with real-world engineering accuracy.*What's Included:*
- Full SolidWorks Assembly file (.SLDASM)
- All individual Part files (.SLDPRT)
- STEP file of full assembly (.STEP)
- STL files of all individual parts (3D print ready)
- Clean geometry — no errors, print & machine ready
Model Features:

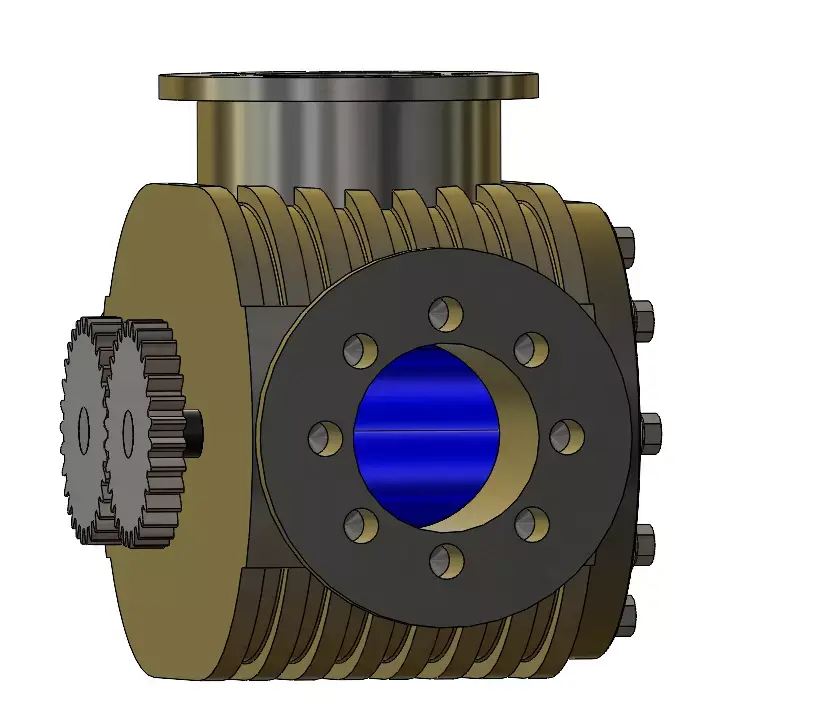

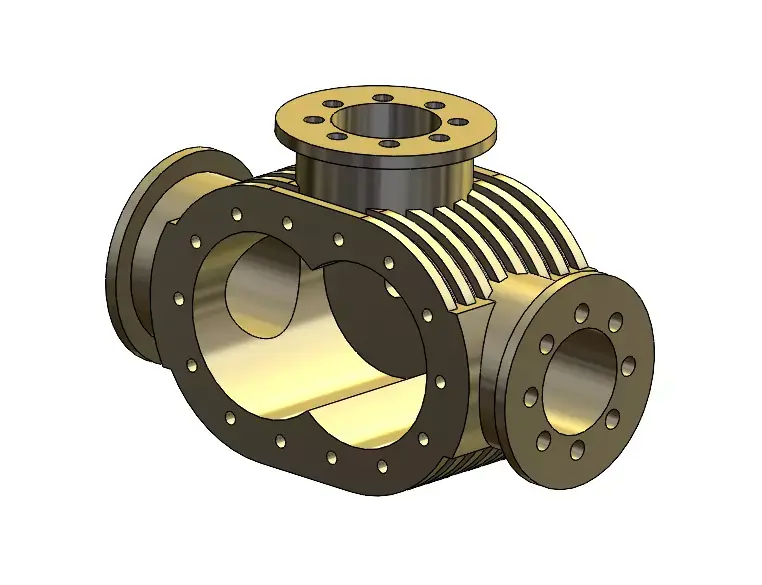

- Twin helical lobe rotors (visible in cutaway view)

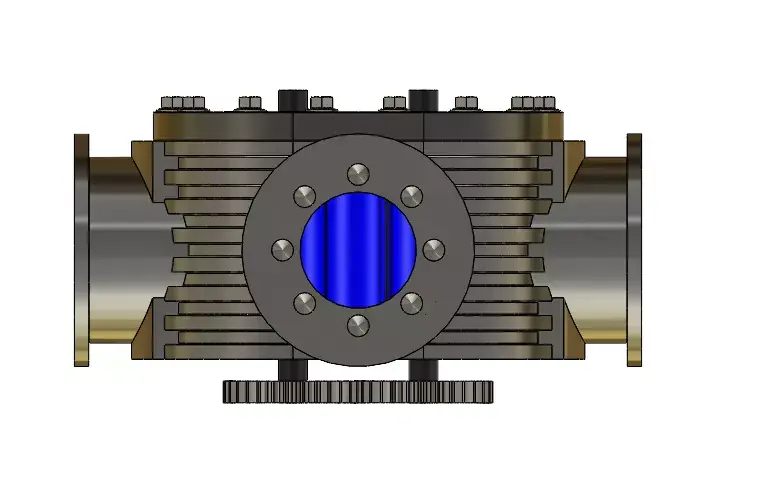

- Flanged pipe connections (top & side ports)
- Cooling fin housing
- Bolted front cover plate with hex bolts
- Fully constrained assembly with proper mates
Perfect For:
- Mechanical engineers & students
- Industrial design reference
- 3D printing prototypes
- CNC machining reference
- Animation & visualization
- Academic & research purposes
Custom Work Available:Need modifications, different sizes, or a custom compressor design? Feel free to message me — I offer custom CAD services!
STL (Stereolithography, filesize: 6.13 MB), SLDPRT (SolidWorks, filesize: 6.43 MB)
