SAAB 9 Throttle Repair Kit

Specification:

Print parts from PA6, PA12, taking into account the degree of shrinkage of plastic
The work of gears made of PETG plastic is also possible
In addition, you need to have:
A plug-in nut M3 (the nut needs to be heated, then inserted)
Screw M3*20

The procedure for disassembly and installation of the throttle repair kit

Remove the flap lobe by unscrewing 2 screws
Remove the throttle axis

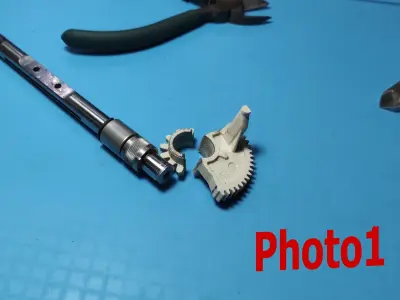

incise the arc-shaped gear with a thin disc for Angle Metal Cutting Grinder or dremel hand machine in the places as in photo 1
Mark the cut places with a marker (in the future, the half gear will need to be installed according to these labels)
Cut off the M3 screw head

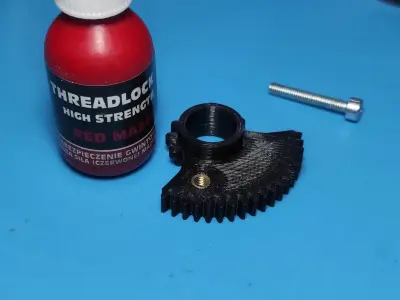

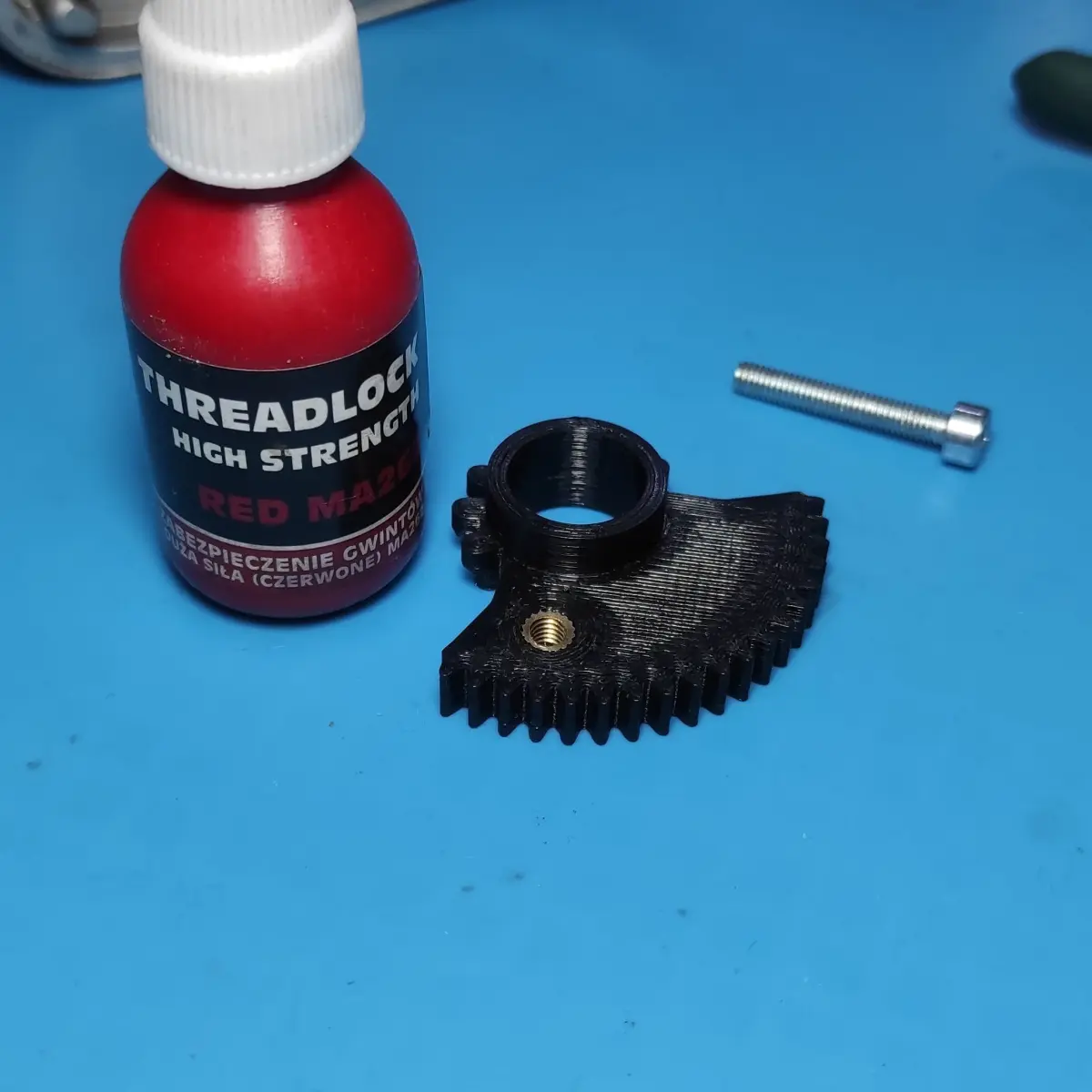

Melt the nut bolt into the half gear
Screw in the screw by placing it on the thread lock

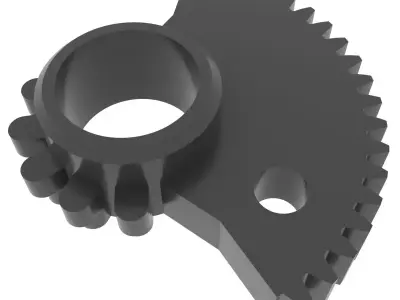

Press the half gear according to the marks marked in advance
Install the spring in the throttle body as in photo 7

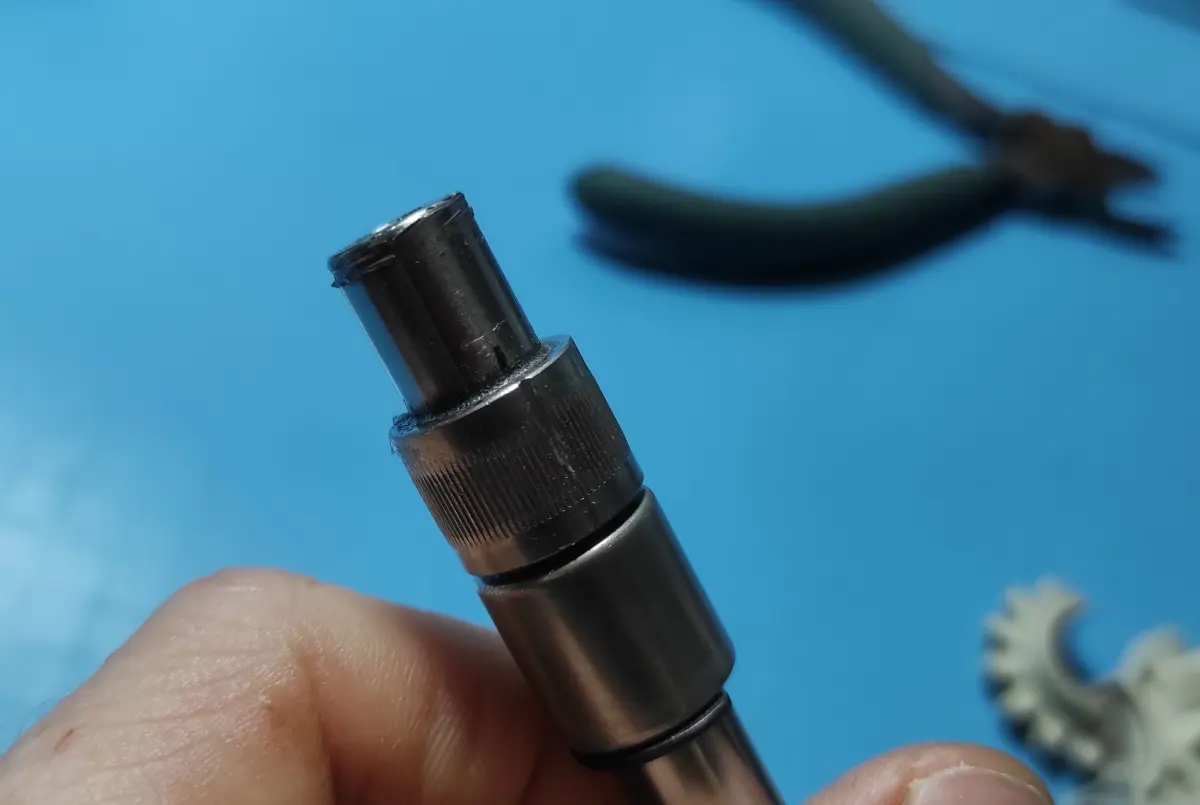

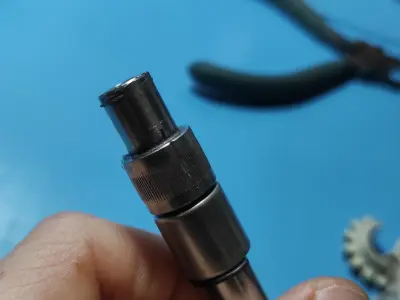

Press the shaft with a new half gear into the throttle body
Install the throttle lobe in place (the screws should be smeared with a thread retainer)

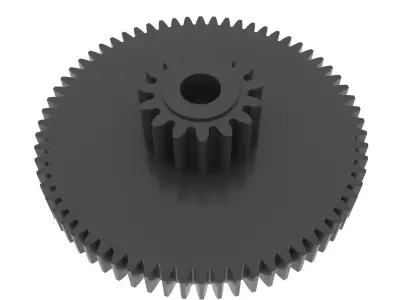

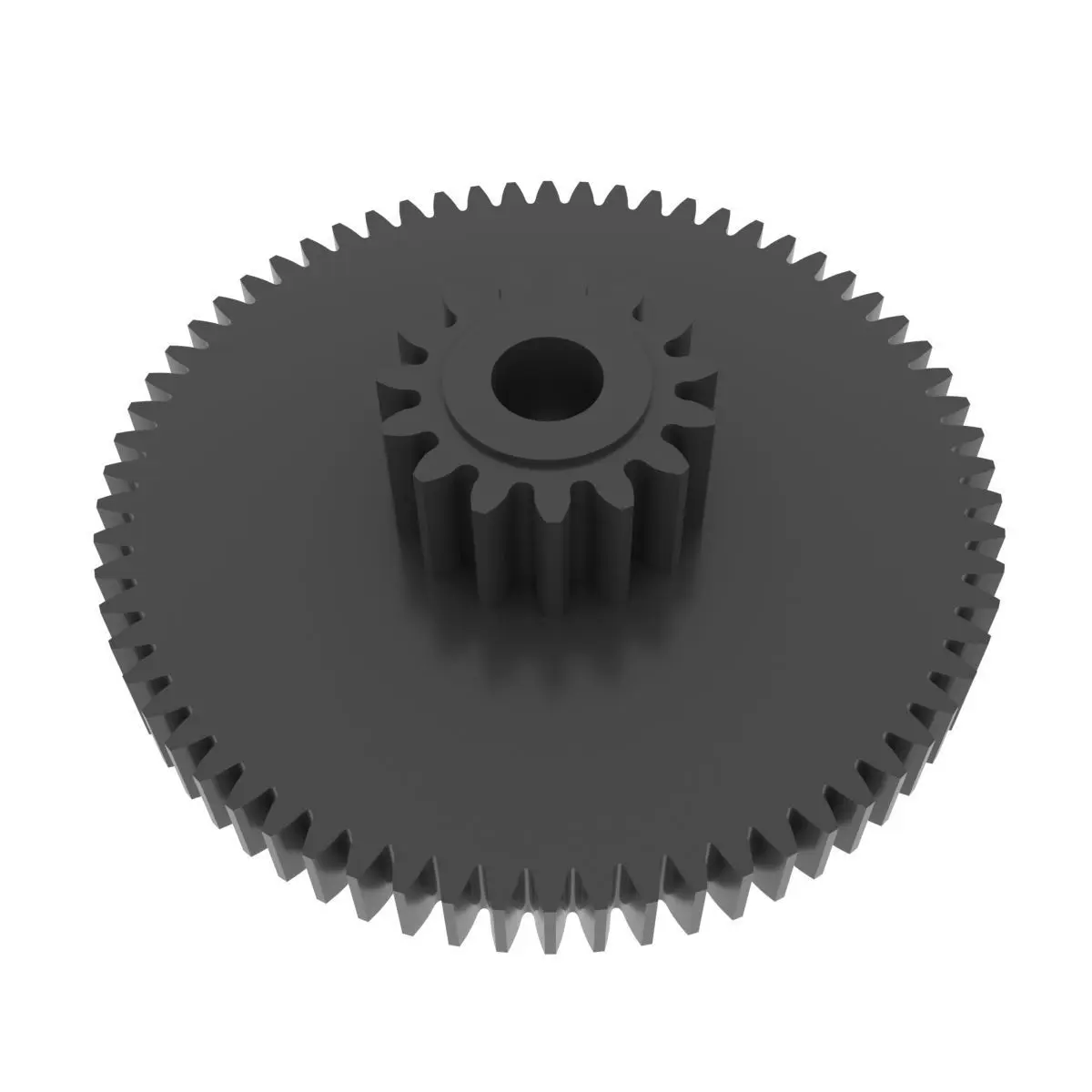

Install the reduction gear printed in advance
Assemble the throttle valve by installing the sensor cover
