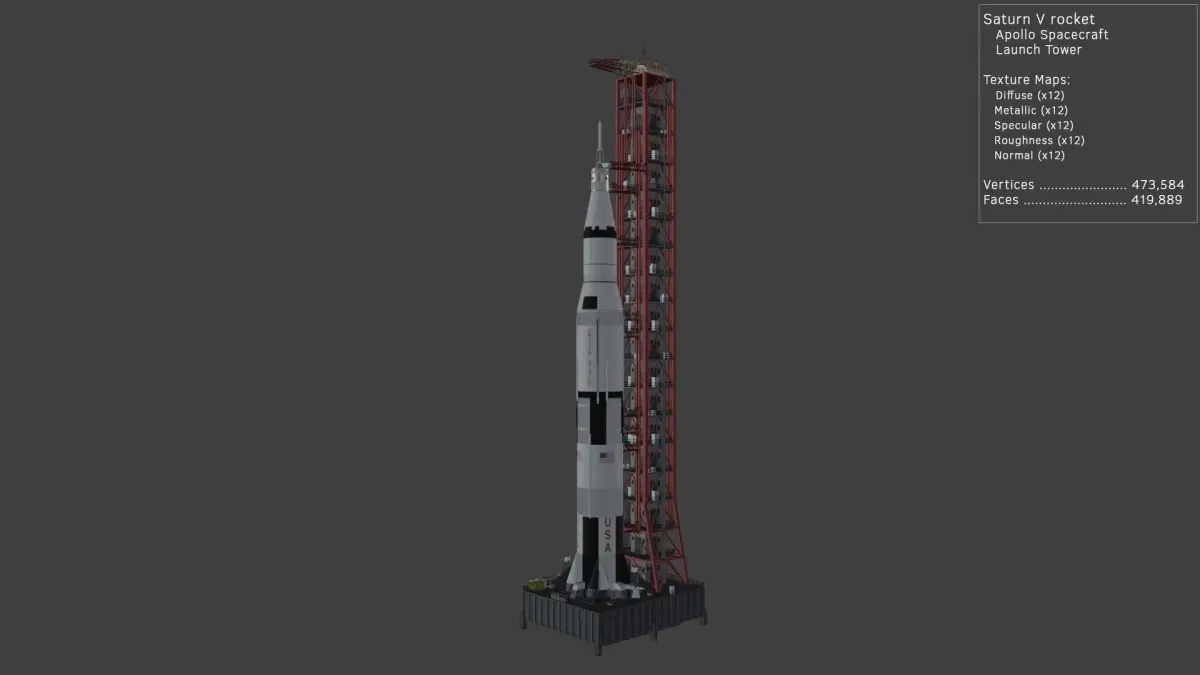

Detailed model of the Saturn V launch vehicle and Apollo lunar spacecraft including launch tower.
Geometry and Rigging
The model is divided into separate objects for each component of the vehicle:

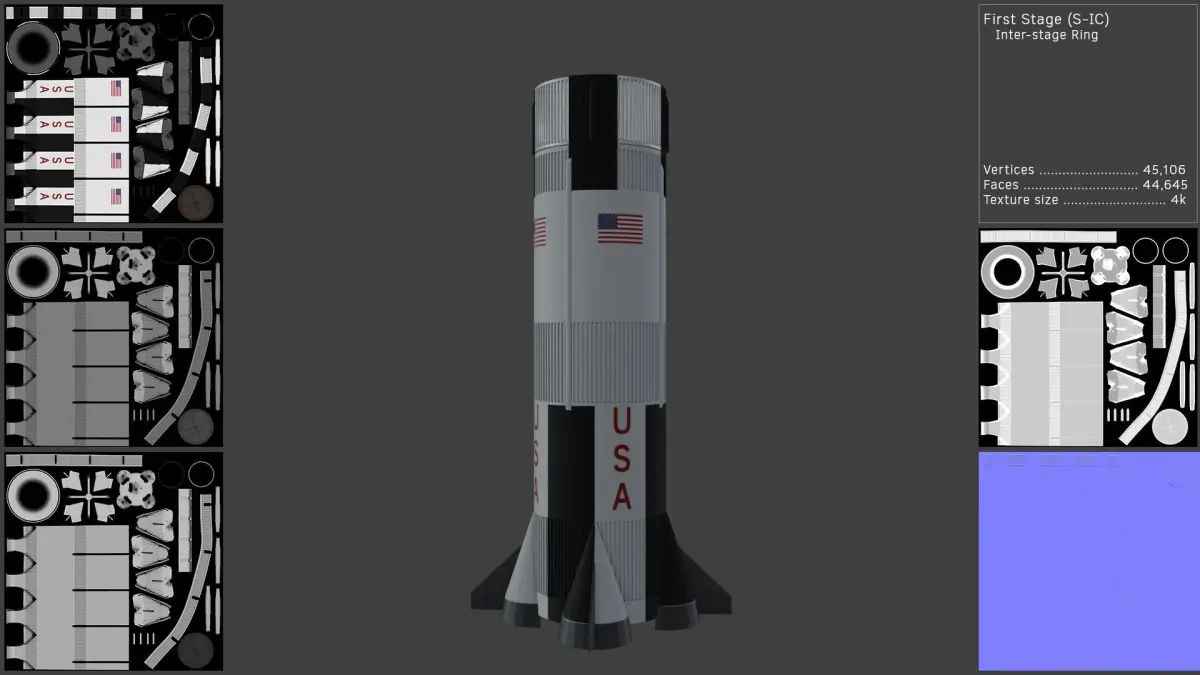

- Saturn V First Stage (S-IC)

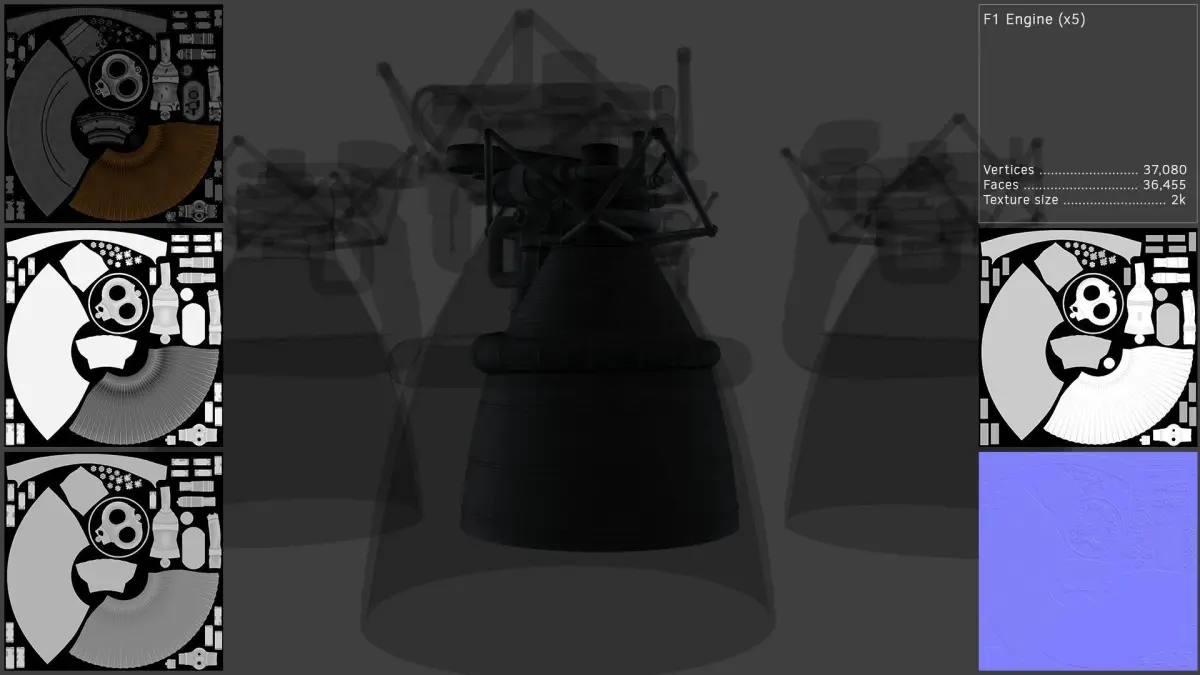

- F1 Engine (x5)
- Inter-stage Ring

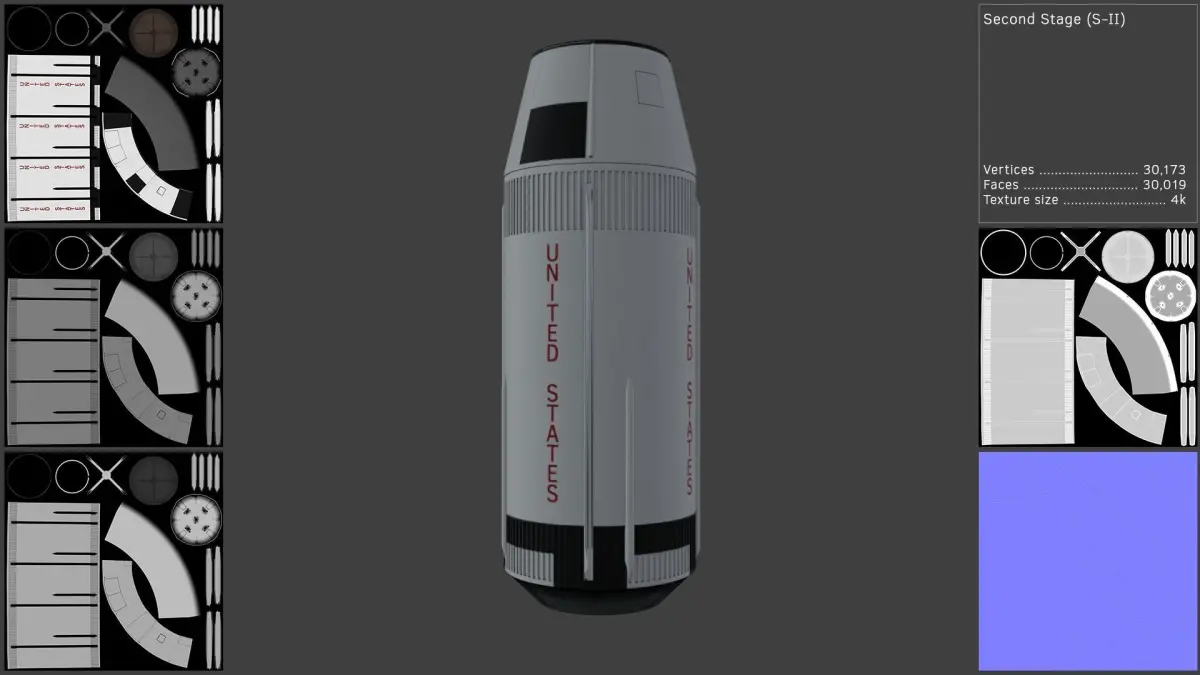

- Saturn V Second Stage (S-II)
- J2 Engine (x5)
- Saturn V Third Stage (S-IVB)
- J2 Engine
- Side Panels
- Apollo Service Module
- High Gain Antenna
- Apollo Command Module
- Launch Escape System
- Docking Probe
- Apollo Lunar Module Descent Stage
- Landing Gear (x4) (with rigged controller)
- Apollo Lunar Module Ascent Stage
- Launch Tower
- Towe Access Arm
- Tower Service Arms
- Tower Crane
- Tower Base
- Tail Service Masts with animated arms
The total poly count is 419,889 faces (473,584 vertices) - see the preview video for a detailled breakdown of the poly count for each component.
Note: The rigged Landing Gear is only available in the native Blender format.
Materials and Textures
The model comes 12 PBR materials with a total of 60 textures - a colour, metallic, specular, roughness and normal map for each component:
- First Stage (including Inter-Stage Ring ) - 4k
- F1 Engine - 2k
- Second Stage - 4k
- J2 Engine - 2k
- Third Stage (including side panels) - 4k
- Service Module (including High Gain Antenna and CM clamp) - 4k
- Command Module (including LES and Docking Probe) - 4k
- Lunar Module descent stage (including Landing Gear) - 4k
- Lunar Module ascent stage - 4k
- Tower - 4k
- Tower Arms (Service Arms, Access Arm and Crane) - 4k
- Tower Base (including Tail Service Masts and Tail Service Arms) - 4k
Note: Materials were created for Blender/Cycles but should import correctly into any other render engine, texture maps are logically named so should be easy to connect if they don't import automatically.
BLEND (Blender, filesize: 270 MB), FBX (Autodesk FBX, filesize: 273 MB), TEXTURES (Textures, filesize: 273 MB), PNG (PNG, filesize: 273 MB)
