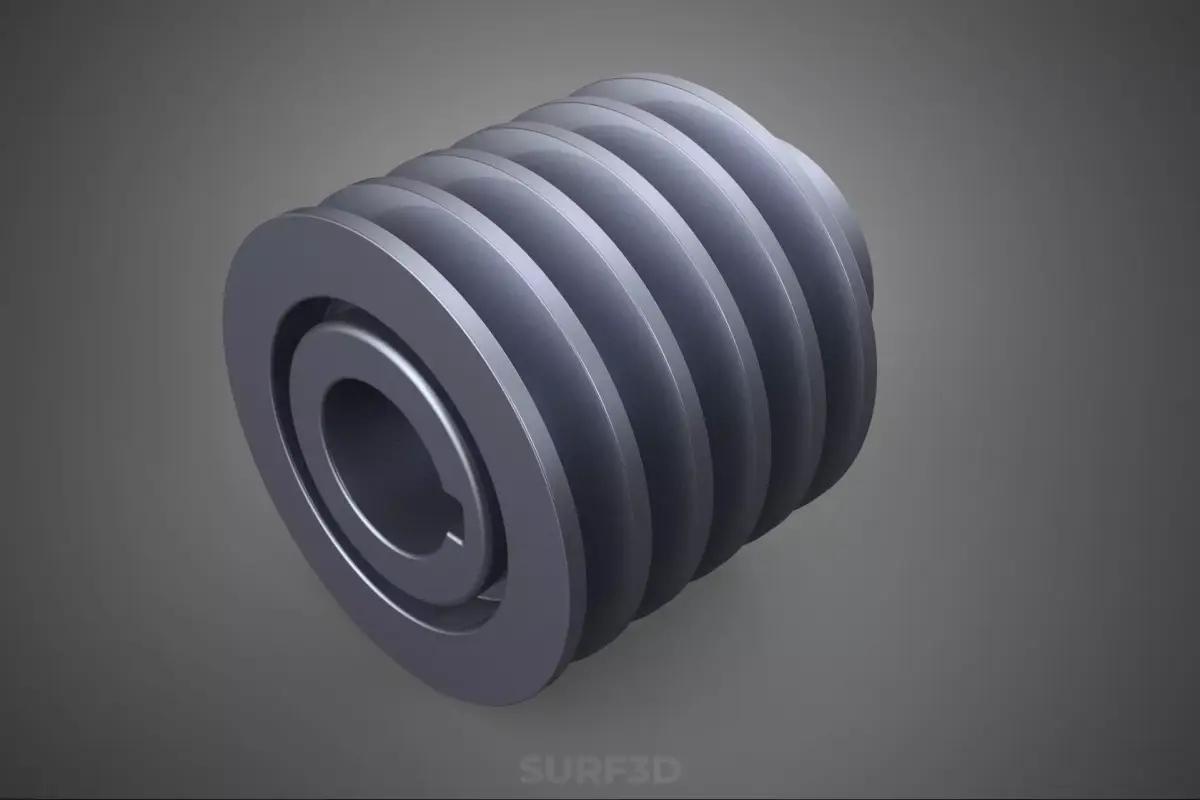

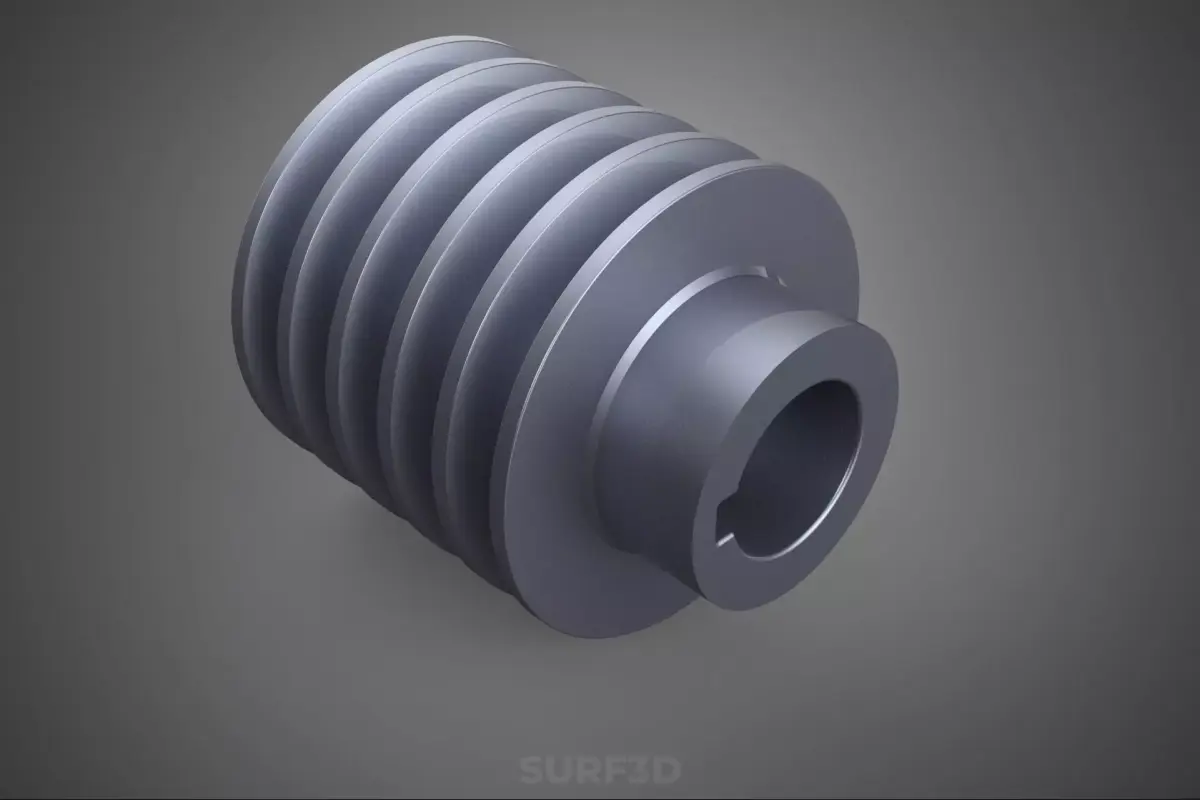

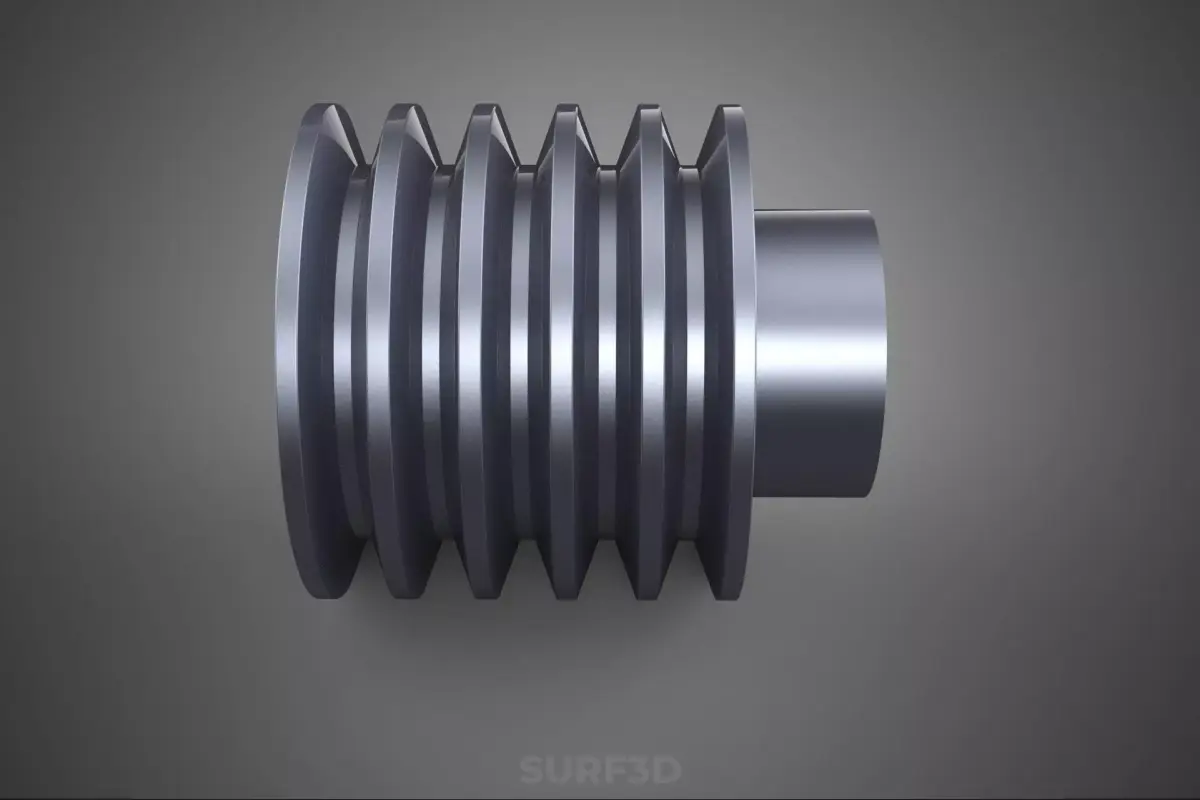

Buy STANDARD 5 FIVE QUINTUPLE GROOVE TRACK PULLEY SHEAVE WHEEL BELT 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Quintuple Groove Track Pulley Sheave Wheel Belt, commonly referred to as a Five-Track Sheave or 5-Groove Pulley, is a specialized mechanical component central to complex belt-drive power transmission systems. This assembly is engineered to facilitate the transfer of significant rotational energy and torque between a driving shaft and a driven shaft by utilizing five parallel, standardized belts, usually of the V-belt configuration.

Nomenclature and Classification

The component functions as a pulley (transmitting power via friction) and a sheave (a grooved wheel designed to accommodate rope or belt). The defining characteristic—quintuple or five-groove—denotes the presence of five distinct, precisely machined channels on the circumferential surface. This configuration dramatically increases the effective contact area and power handling capacity compared to single or dual-groove systems, distributing the mechanical stress across multiple parallel paths.

The term STANDARD indicates that the sheave conforms strictly to international and industry-specific standards, such as those governed by organizations like ANSI (American National Standards Institute) or ISO (International Organization for Standardization), especially concerning groove geometry (e.g., specific pitch diameter, groove angle, and depth tailored for belt profiles such as 3V, 5V, A, B, or C). Adherence to these standards ensures interchangeability and proper synchronization with commercially available standardized belts.

Design and Geometry

Quintuple groove sheaves are typically manufactured from robust materials commensurate with their high-load function, most commonly high-grade gray cast iron (GG20/Class 30), ductile iron, or steel alloys, occasionally using high-strength aluminum alloys for weight reduction in high-speed applications.

Critical geometric features include:

Groove Profile: The cross-sectional shape of the grooves must precisely match the mating V-belt profile to achieve the necessary wedging action, maximizing friction and preventing slippage.

Pitch Diameter (PD): The theoretical diameter where the belt’s tension member rides; this dimension is fundamental for calculating the speed ratio (mechanical advantage) of the drive system.

Outside Diameter (OD): The maximal diameter of the sheave.

Bore and Keyway: The central opening machined to mate securely with the shaft, often incorporating a keyway for torque transfer stability, or designed for specialized bushings (e.g., tapered bushings) for rapid installation and removal.

Dynamic Balancing: Due to the high mass and rotational speeds associated with five-groove systems, these sheaves undergo mandatory dynamic balancing to minimize radial vibration and centrifugal forces, which is crucial for extending the life of both the sheave and the supporting bearings.

### Functional Significance and Applications

The primary purpose of the quintuple groove configuration is to manage high-horsepower (HP) or high-torque requirements while simultaneously enhancing system reliability and operational lifespan.

Advantages of Multi-Groove Drives:

Load Sharing: The mechanical load is distributed evenly across five separate belts, significantly reducing the stress exerted on any single belt and lowering unit tension, thereby minimizing heat generation and fatigue failure.

Redundancy: If one belt fails prematurely, the remaining four belts can often maintain system operation until planned maintenance can be performed.

Reduced Bearing Load: By spreading the overall drive width, the system can sometimes minimize the required belt tension compared to a single very large belt, thus lowering the radial load imposed on the shaft bearings.

Quintuple groove sheaves are indispensable in heavy industrial environments where continuous operation and reliable power delivery are paramount. Typical applications include large air compressors, industrial fans, crushers, centralized HVAC systems, high-capacity water pumps, and heavy manufacturing machine tools.
