Buy The adjustable clamping mechanism 3D model

Name: The adjustable clamping mechanism 3D model
Brand: forestlsls
SKU: 892576
Price: 18.00 USD
Availability: InStock

$18

License: Royalty Free

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

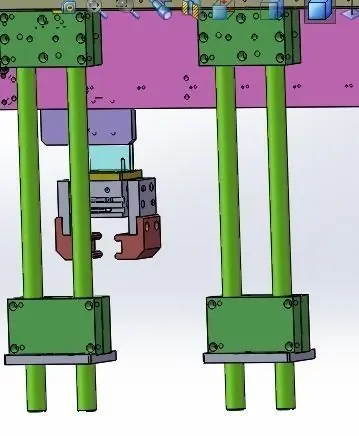

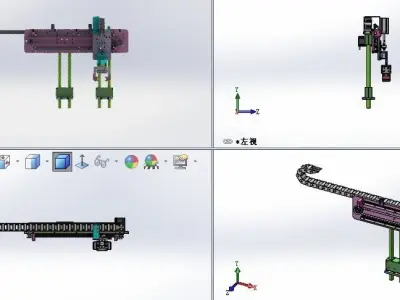

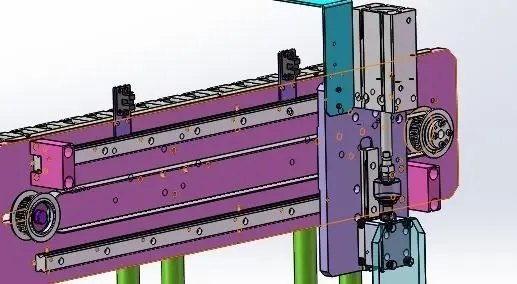

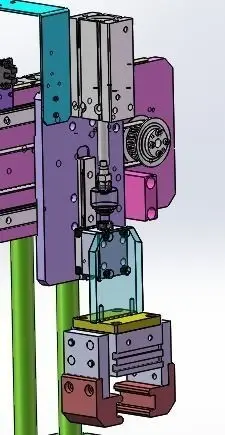

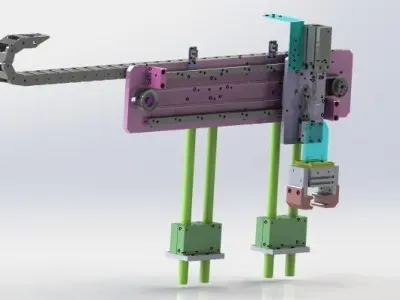

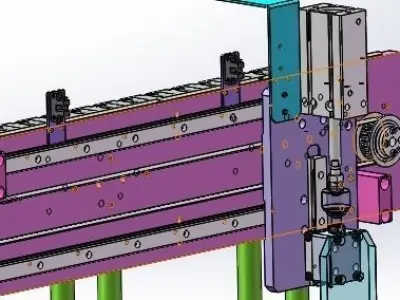

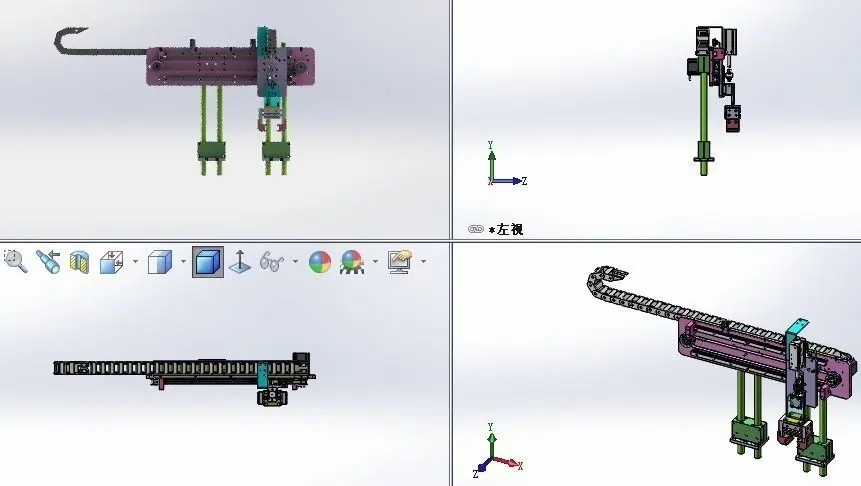

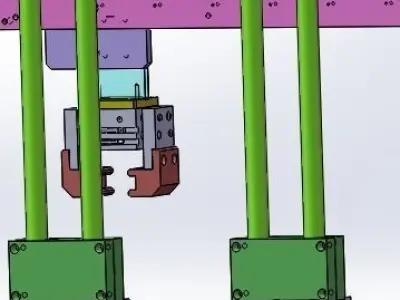

The adjustable clamping mechanism，it can be used to carry the x axis through the synchronous belt wheel, and the z-axis can be used for the upper and lower clamping material through the cylinder and the slide rail.At the same time, the z axis has mechanical adjustable height mechanism to eliminate the height difference of different product modulation.The whole organization is typical, can be used directly, welcome to study reference.This model is transformed into step and iges general model download, please refer to!Also includes 3d original files, welcome to download!if you like,you can paypal for you to get this models or if you have any questions also you can email to me.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Unknown

Tags

Adjustable Displacement Device Belt Motor Wheel Slide Rail Pneumatic Cylinder Machine Industry Equipment Manufacture Production Assembly Factory Automatic Industrial Industrial machine Industrial factory
