Product Overview:

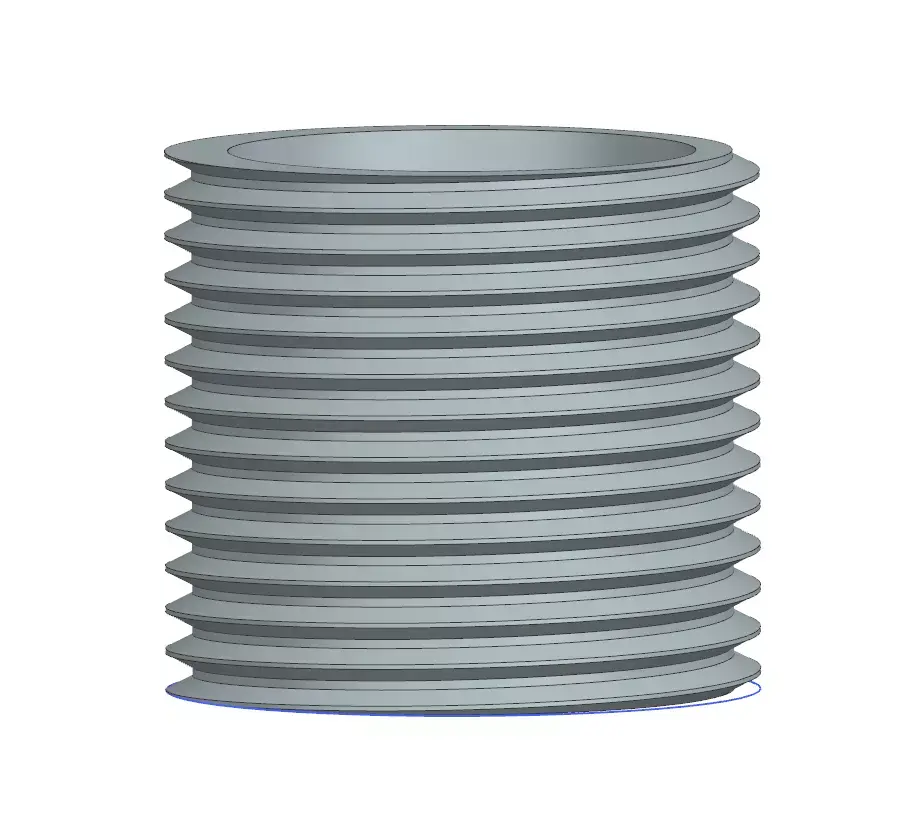

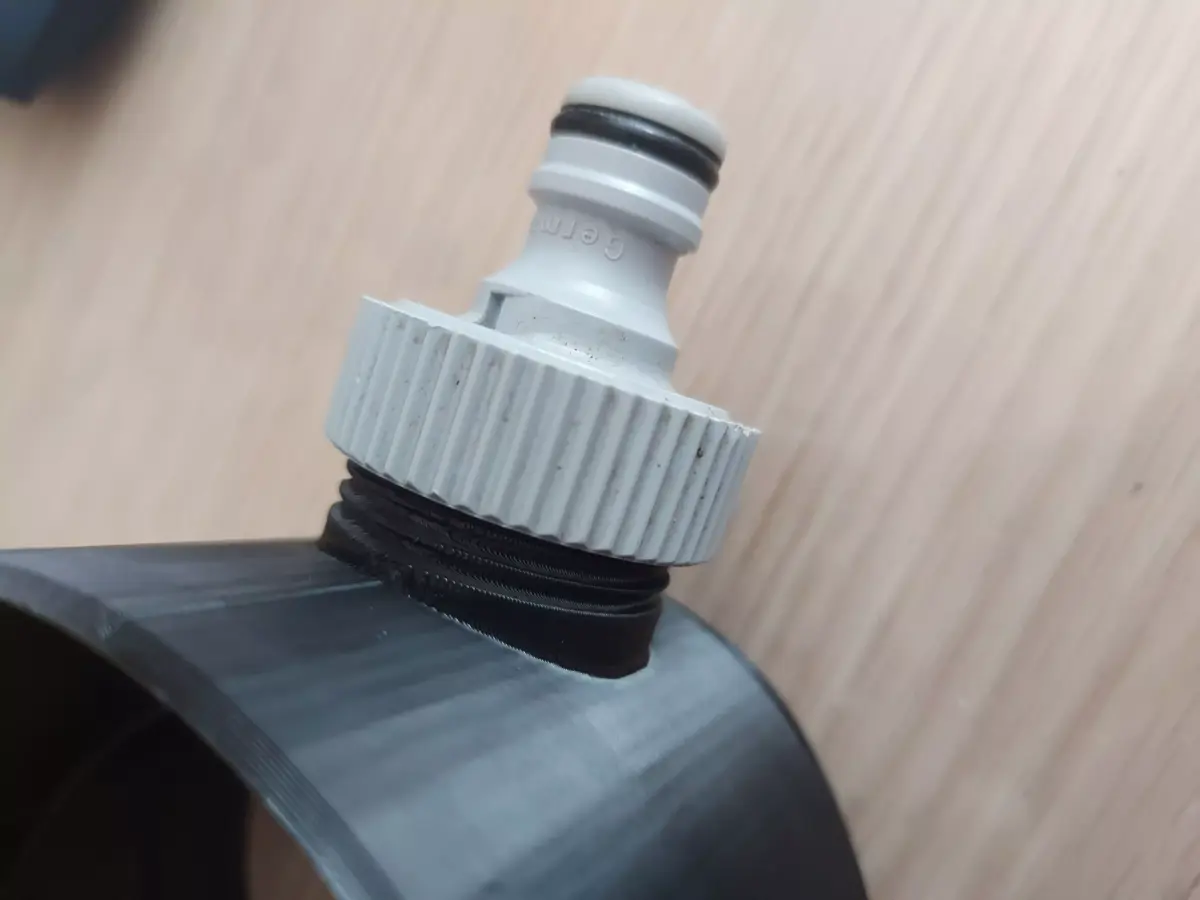

This high-quality 3D model set features precision-engineered G1(1 inch) and G3/4 (3/4 inch) pipe threads, specifically designed for garden irrigation systems (Gardena-compatible) and general plumbing tasks.
What’s included:

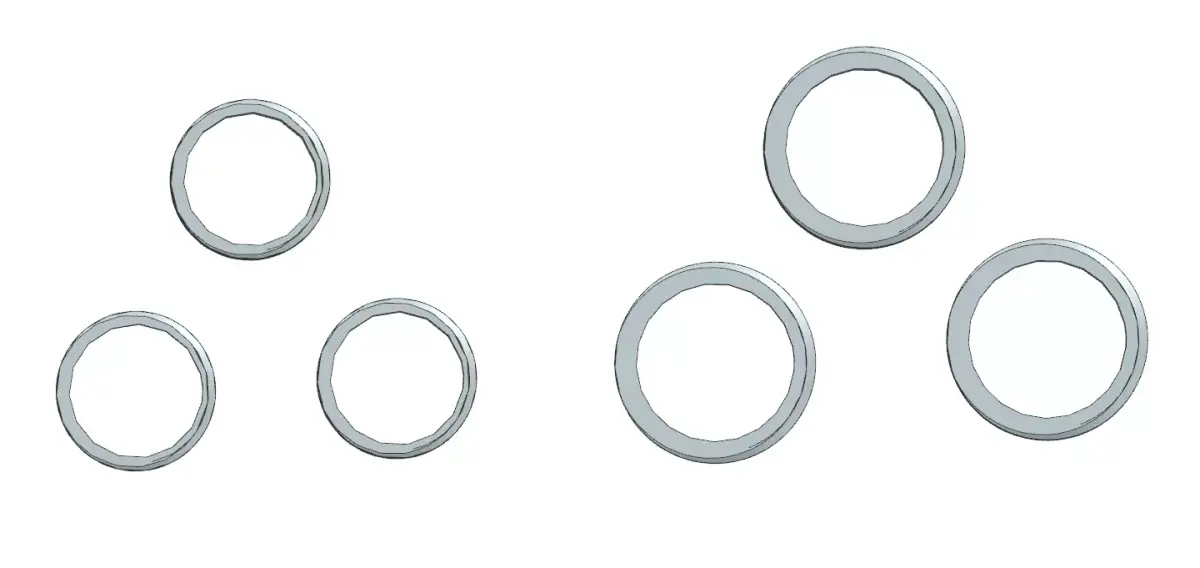

You will receive 6 variations in this package to cover all your needs:

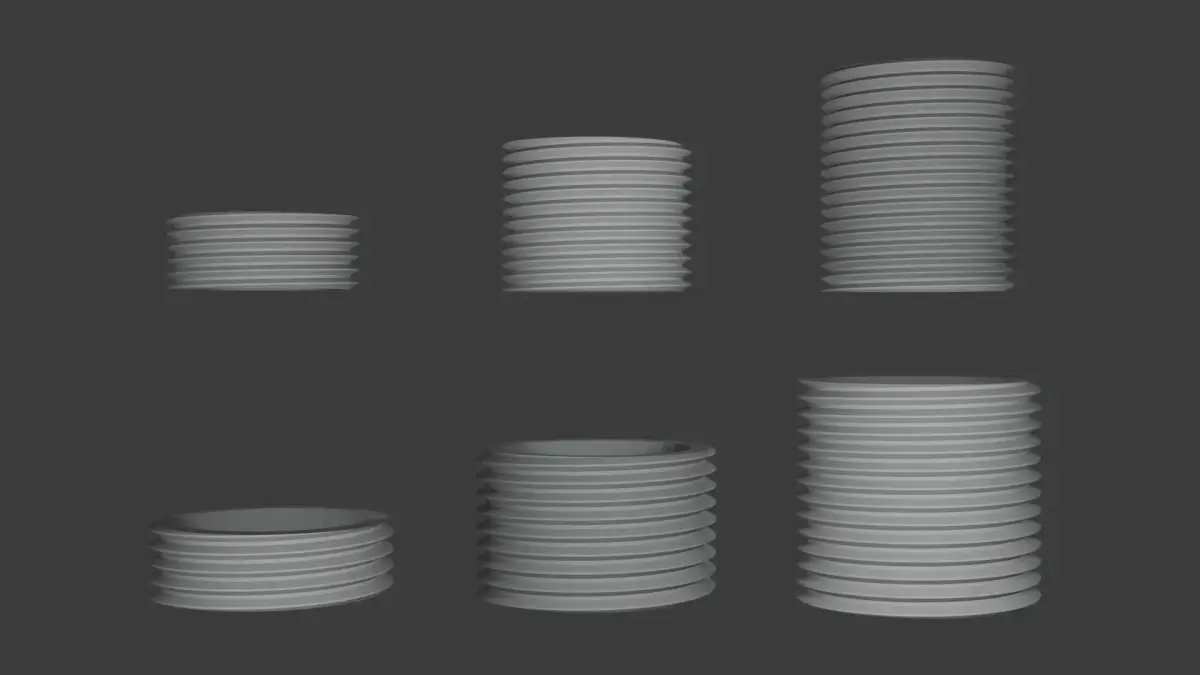

- G3/4" (BSP): 10mm, 20mm, and 30mm shaft length. (Inner diameter: 22mm)
- G 1" (BSP): 10mm, 20mm, and 30mm shaft length. (Inner diameter: 26mm)
- Each variation is available as a .obj (.mtl), .stl or .stp file for maximum flexibility and subsequent editing.
Design Optimizations:
- Tolerances: All threads are modeled with a -0.25mm diameter offset. This compensates for the natural expansion of 3D-printed plastics, ensuring a smooth fit right off the build plate without the need for post-processing.
- Wall Thickness: Engineered for durability. The robust walls are designed to withstand standard household water pressure when printed with high-density settings.
- Printability: Optimized for vertical printing (z-axis). In this orientation, the threads require ZERO supports.
Technical Specs:
- Thread Type: Parallel Pipe Thread (G / BSPP) according to DIN EN ISO 228.
- Flank Angle: 55°
- Pitch: 14 TPI (for G3/4) / 11 TPI (for G1)
Recommended Print Settings:
- Material: PETG, ASA, or ABS (for UV and water resistance).
- Layer Height: 0.1mm - 0.15mm (crucial for thread precision).
- Wall Loops: At least 4-6 perimeters for watertight performance.
- Infill: 40% - 100% (Gyroid recommended)
- Orientation: Print vertically for best thread quality.
STL (Stereolithography, filesize: 2.61 MB), OBJ (OBJ, filesize: 2.61 MB), STP (STEP, filesize: 2.61 MB)
