Description

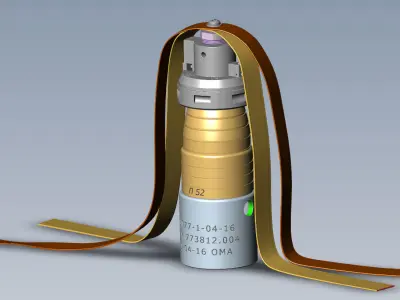

I present a 3D model of Russian 3B30 (3Б30) a Dual-Purpose, High-Explosive Anti-Tank and Anti-Personnel HE-Frag submunition off artillery cluster rockets.
Training stand model (mockup).
Historical (technical) Background:
This is the Russian 3B30 (3Б30), a Dual-Purpose, High-Explosive Anti-Tank and Anti-Personnel HE-Frag,
submunition with a 200-second Self-Destruct
fuze designed to destroy lightly armoured vehicles,
infantry fighting vehicles, Armoured Personnel Carriers, self-propelled guns, manpower, aircraft and helicopters in form-up locations.

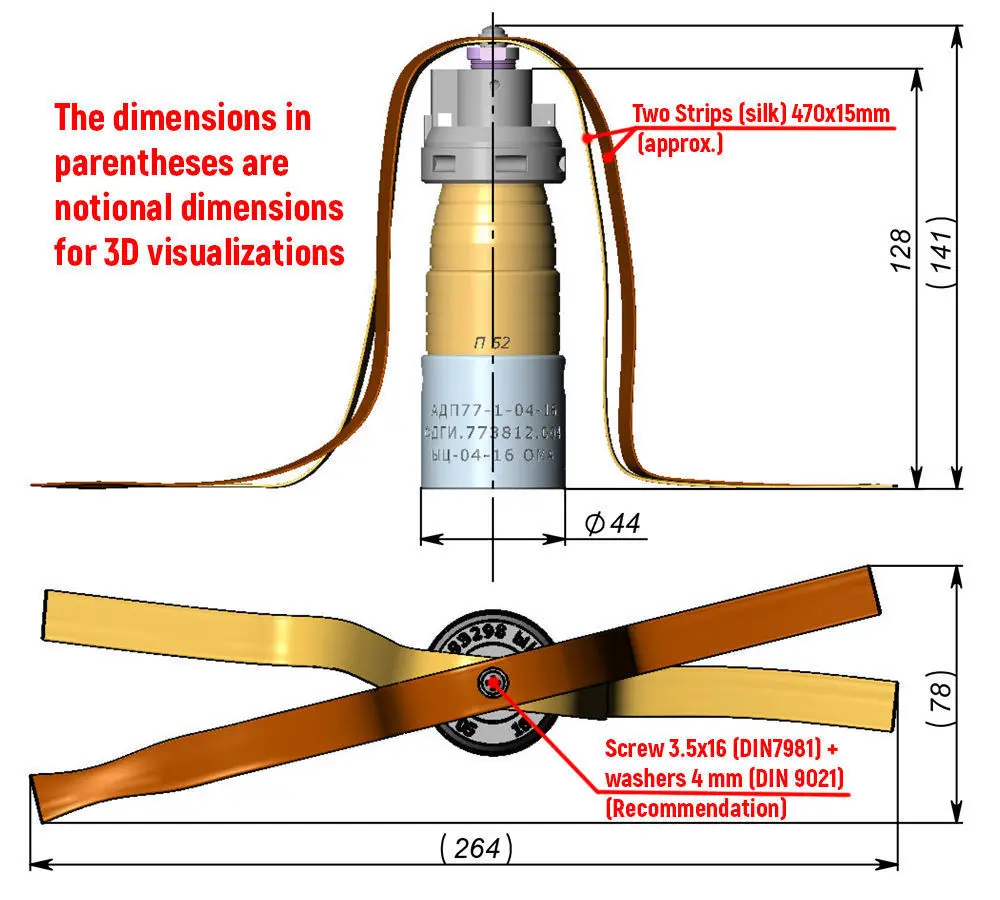

Dimensions of the assembled model 44x128 (264x78x141)mm. - original size (for 3D visualization).
The model is made in SolidWorks. It is intended primarily for 3D printing of a bench model - a training model.
It is used as a visual aid and is not a full copy of the external forms of the original product.
Although it shows all the main external elements.
3D Model is adapted for the possibility of manufacturing and subsequent assembly of the product model.
The model is an assembly model, contains a part file (STL) for the possibility of its manufacturing,
in a high-polygonal version to obtain qualitatively smooth forms. In addition, the set contains all additional files
to obtain high-quality realistic visualization with close-up (smooth lines, selected surfaces for applying materials or textures), (see rendering examples).
In addition to solid model file formats, converted high detail polygonal file formats are additionally provided.
Mesh:
Vertices 419722
Faces 839480
(obj)
Please rate and write a review about this model.
If you have any questions, please message me.
