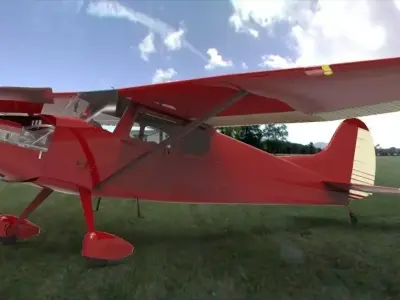

Cessna 170B Free 3D model

free

License: editorial_no_ai

author:

Nsfr750

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Nsfr750». CGhub does not claim copyright ownership over the content used.

The Cessna 170 is a light, single-engine, general aviation aircraft produced by the Cessna Aircraft Company between 1948 and 1956.

The Cessna 170B was introduced in 1952 featuring a new wing tapered outboard of the flaps, incorporating dihedral similar to the military version.The B model was equipped with very effective modified-Fowler (slotted, rearward-traveling) wing flaps which deflect up to 40° adapted from the C-305/Bird Dog, a wing design that lives on in the Cessna light singles of today (constant NACA 2412 section with a chord of 64 inches (1,600 mm) from centerline to 100 inches (2,500 mm) (the outboard end of the flaps), then tapering to 44-inch (1,100 mm) NACA 2412 section chord at 208 inches from centerline, with three-degree washout across the tapered section).The 170B model also included a new tailplane, a revised tailwheel bracket, and other refinements over the 170 and 170A.

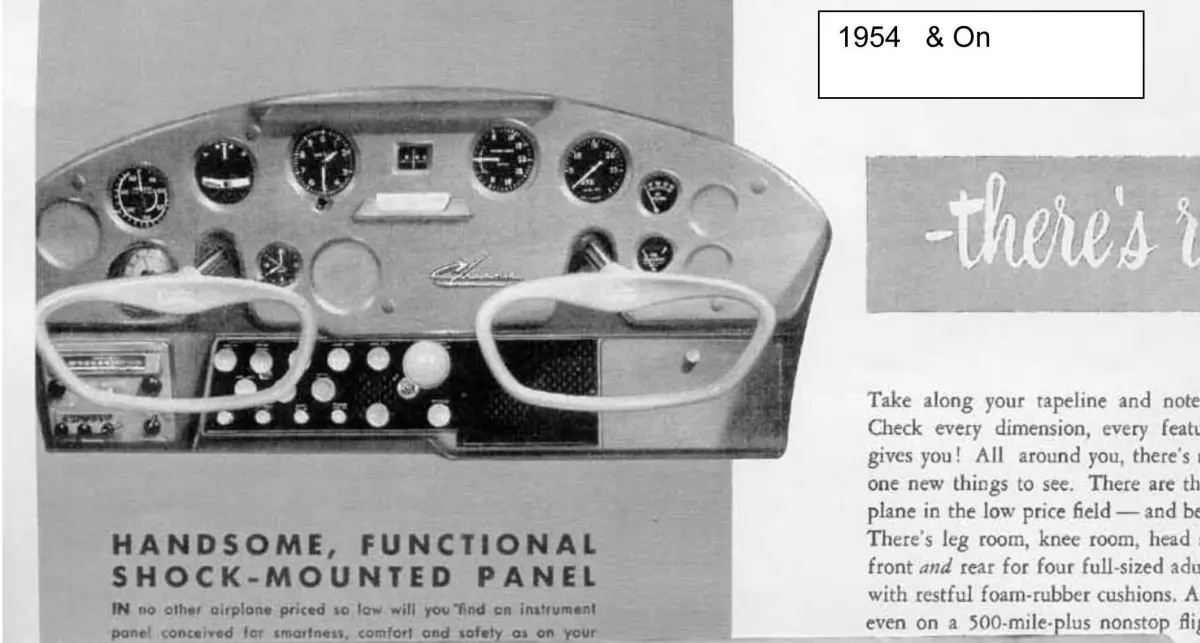

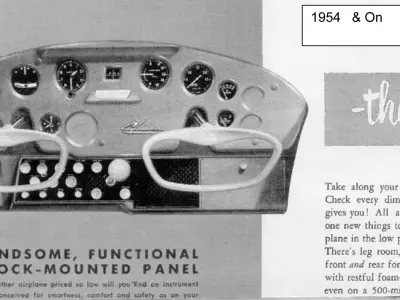

(photo of original for comparison)
