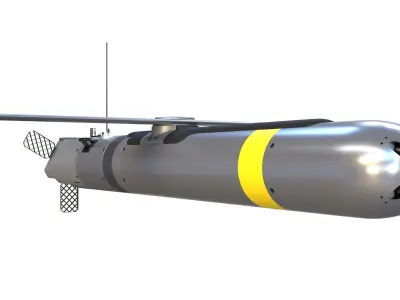

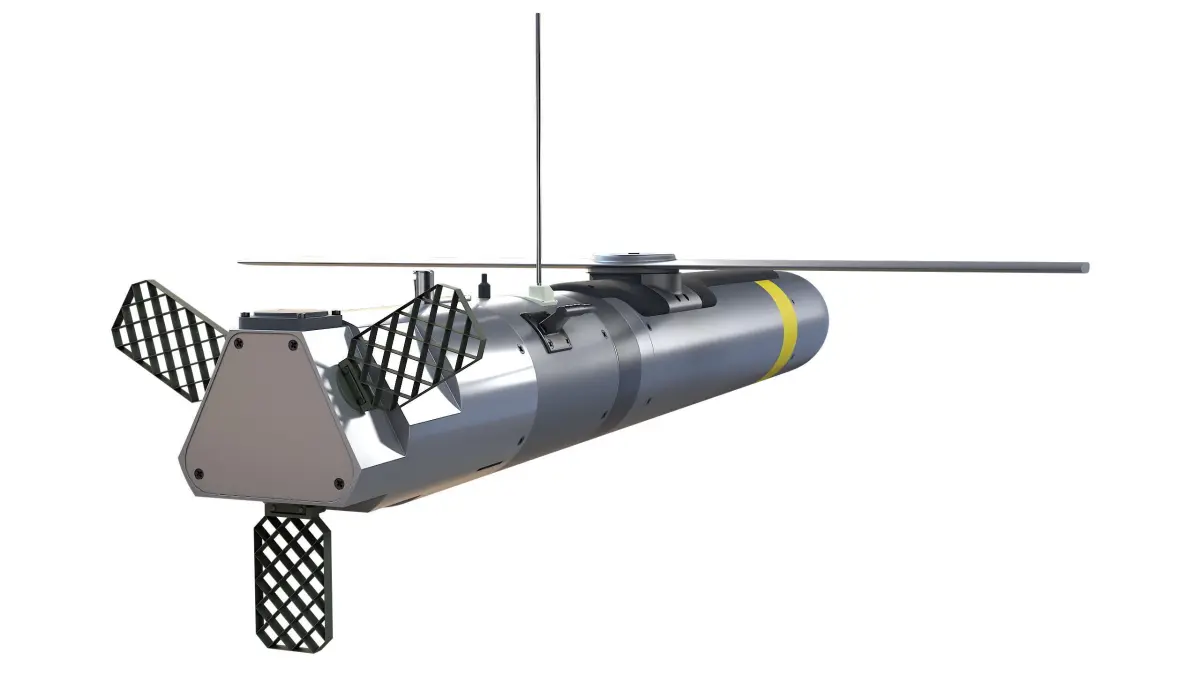

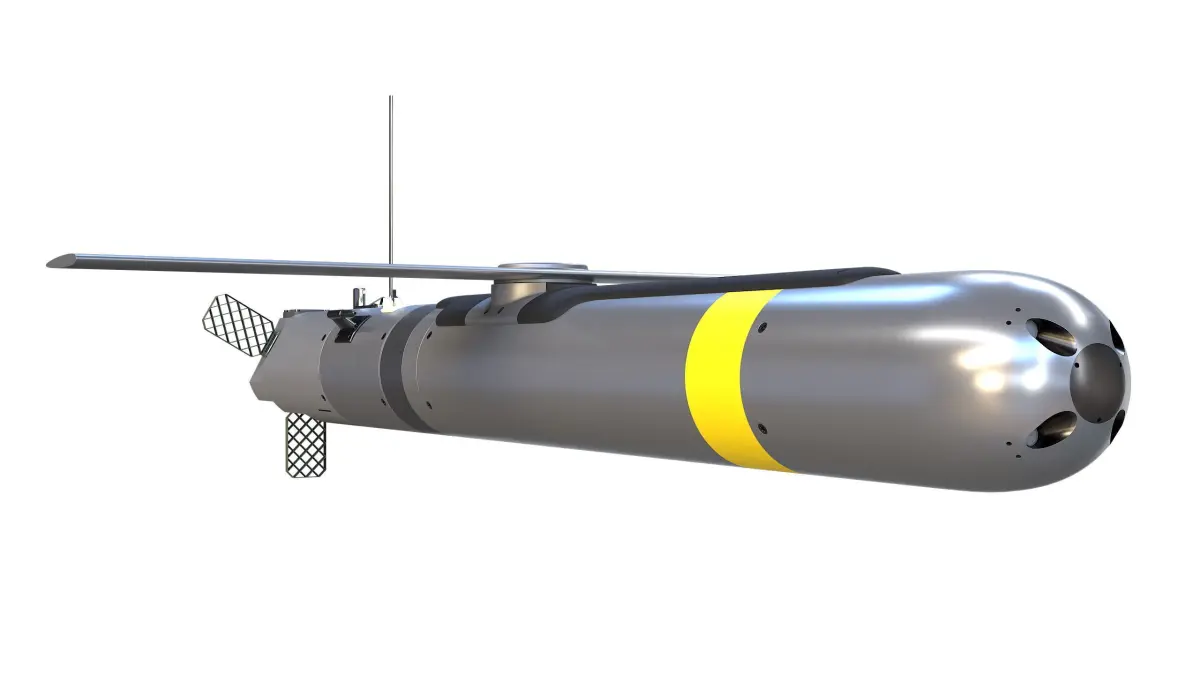

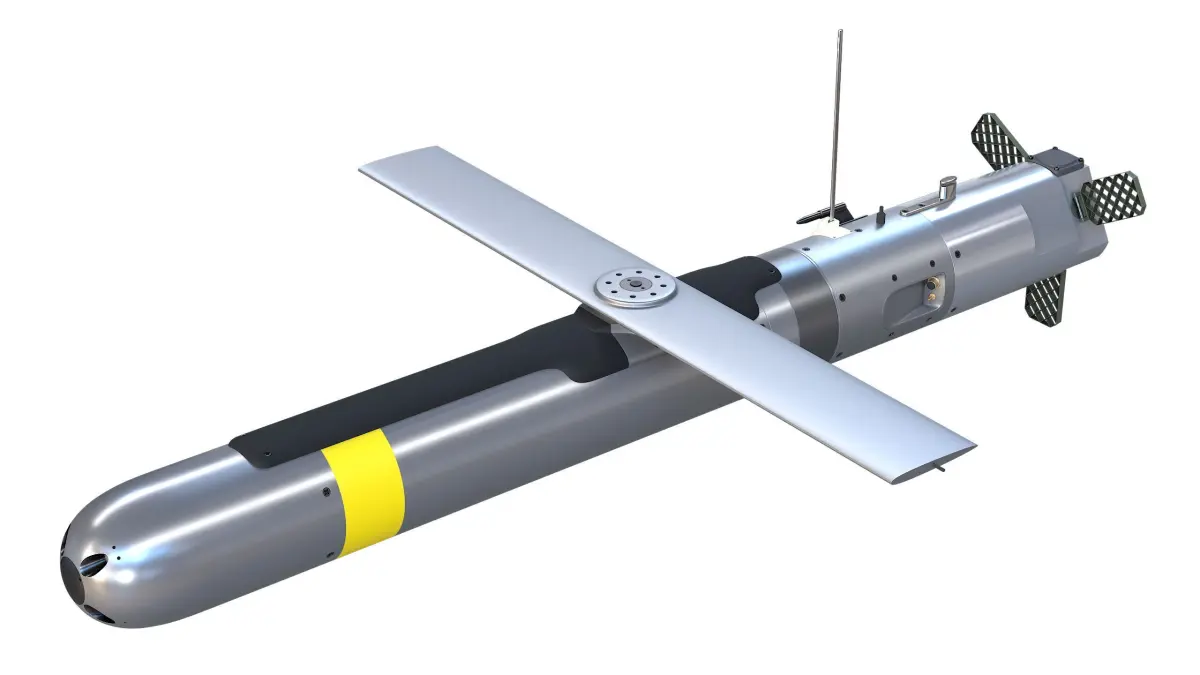

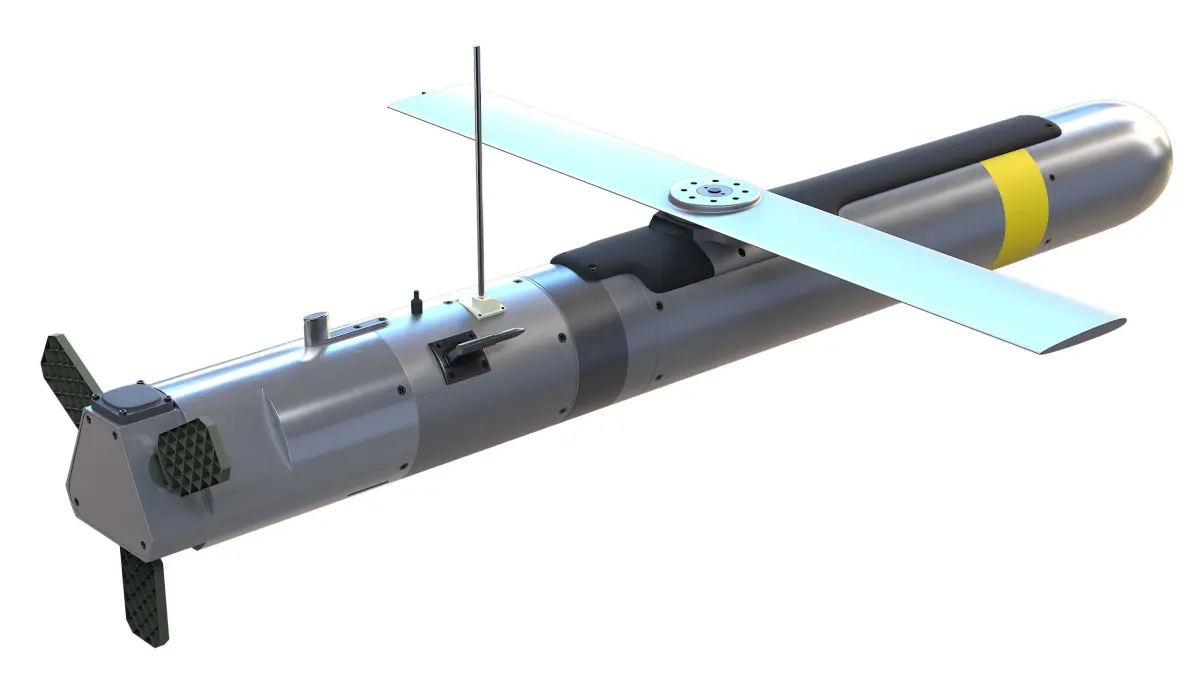

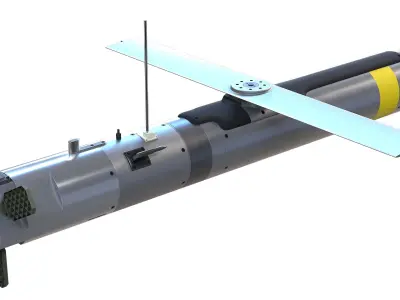

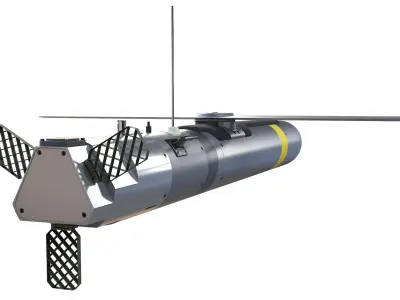

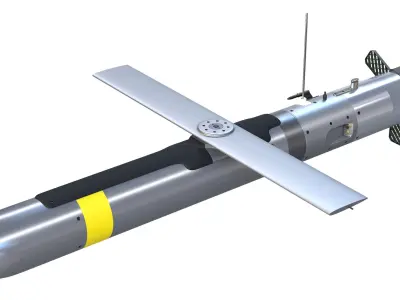

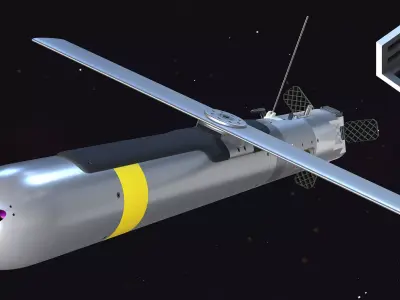

GBU-69B Small Glide Munition 3D model

$38

License: royalty_free

author:

EFC

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «EFC». CGhub does not claim copyright ownership over the content used.

GBU-69/B Small Glide Munition (SGM)

The GBU-69/B is a tube-launched precision-guided glide bomb with a GPS navigation system and a semi-active laser seeker for terminal homing on moving targets. Aerodynamic surfaces are a single piece wing, which rotates into flight position after launch, and three lattice type flip-out tail fins. The weapon has a two-way datalink for inflight targeting updates. A notable feature of SGM is the comparatively large blast-fragmentation warhead, which contributes more than half of the weapon's total weight of 27 kg (60 lb). The GBU-69/B has so far been integrated with SOCOM's AC-130J aircraft, and integration tests with unmanned platforms like the MQ-1C Gray Eagle and MQ-9A Reaper are ongoing.

The texture maps include basecolor, height, metallic, roughness and normal.

Additional notes:

Scene does not include the light setup

File Formats:

.MAX
.FBX
.OBJ
.Blend

Textures Formats:

.PNG Textures 4K

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: non_overlapping
Geometry: Polygon mesh
Polygons: 79006
Vertices: 82258

Tags

Socom Bomb Tube launched Precision guided Glide Gps Navigation System Semi active Laser Seeker Ac 130j Mq 1c Gray Eagle Mq 9a Reaper Military Rocketry
