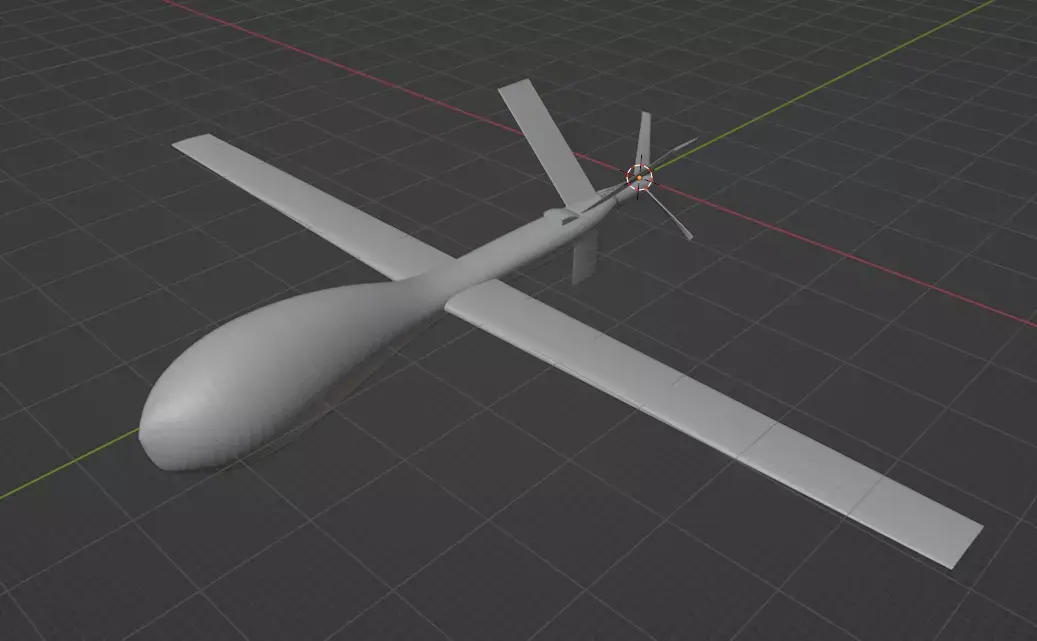

Name: Modern warfare UAV Type-009 Atomic Reaper 3D model
Brand: okb1creativedesignbureau
SKU: 958082
Price: 2.00 USD
Availability: InStock

You can support my models by downloading the other paid version with CAD NURBS files included:

$2 tip: Looking for the fully editable NURBS based master files? High-precicion original STEP native version available for professional and manufacturing version available here: https://www.cgtrader.com/3d-models/aircraft/military-aircraft/modern-warfare-uav-type-009-atomic-reaper-iges-included

$5 tip: Looking for the fully editable NURBS based master files? High-precicion original STEP + IGES + X_B native version available for professional and manufacturing version available here: https://www.cgtrader.com/3d-models/aircraft/military-aircraft/modern-warfare-uav-type-009-atomic-reaper-iges-and-3mf-included

Overview:

This design utilized a specialized Leading Edge aerofoil combined with multi chamber thickness wing root and wing tip aerofoil constraint, optimized for the aerodynamics stability for drone combat warfare . The geometry is based on the internal old research data of the team and verified against NACA aerofoil profiles. Designed for optimal Lift-to-Drag ratio in the transonic regime.

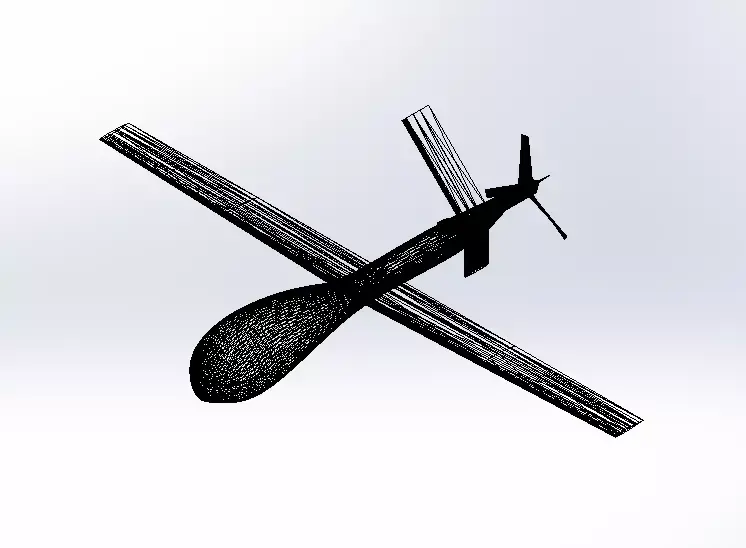

Note for Developers: This is high fidelity OBJ mesh exported from a NURBS-based CAD environment. The topology is optimized for visual accuracy and 3D printing availability (STL included). This assets is developed using mathematical-first lofting principles, using custom aerofoil profile lofted along the leading edge and trailing edge longitudinal aerodynamic stability.

File Included:
