Description

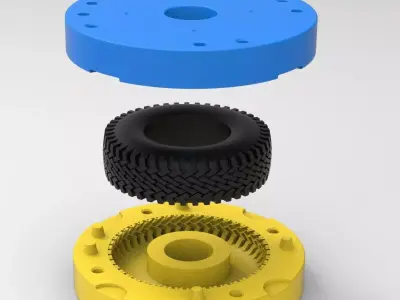

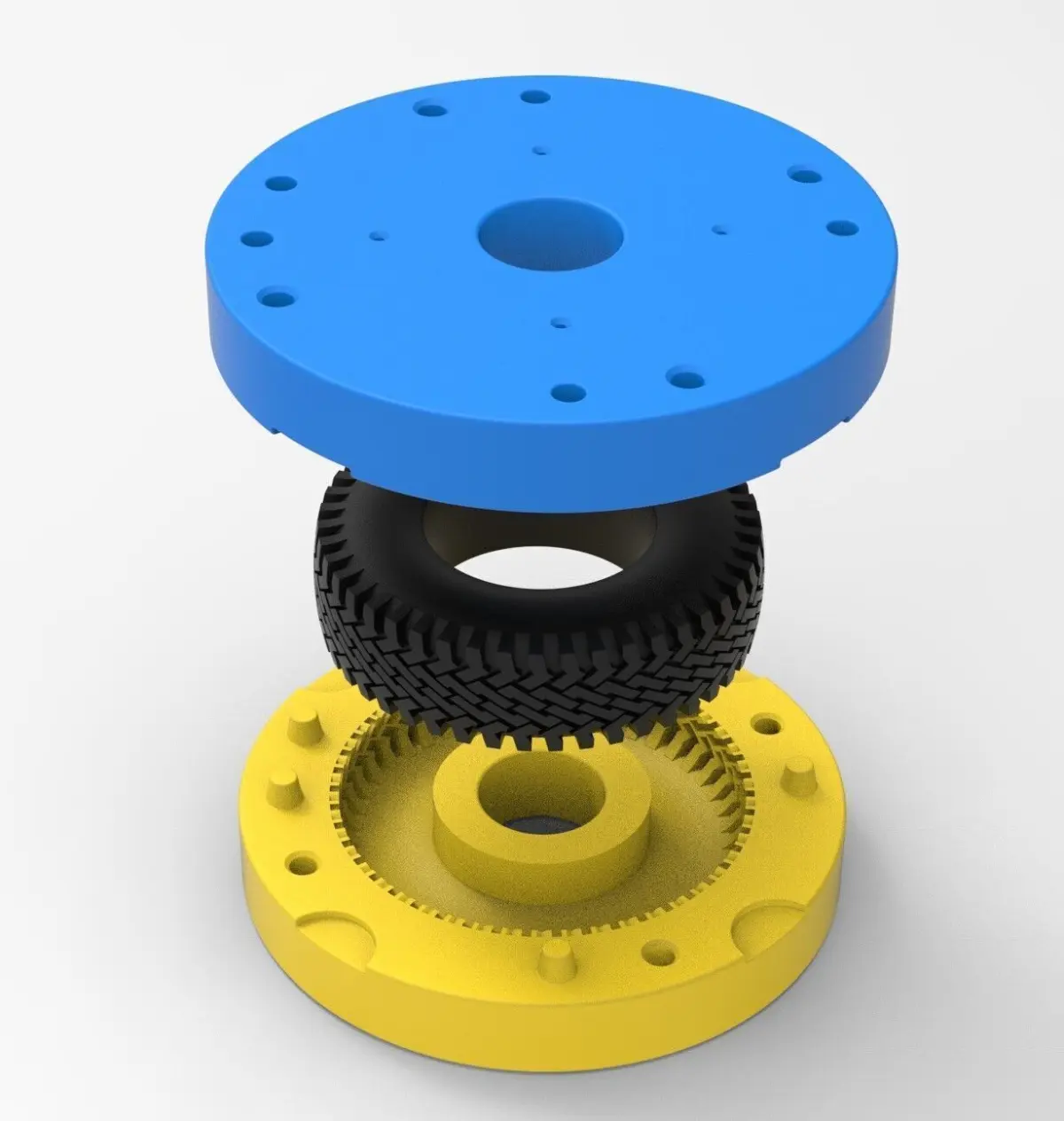

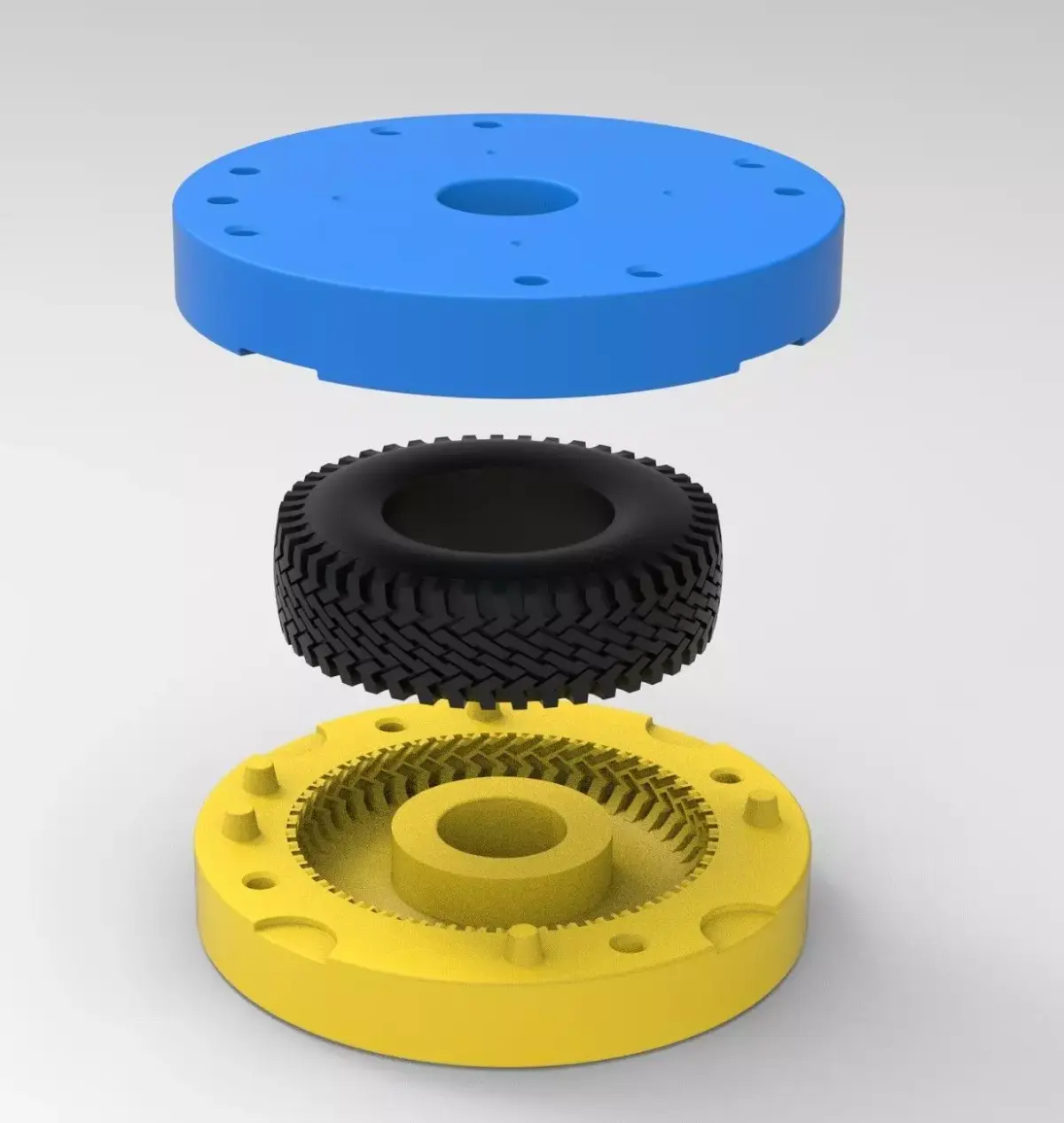

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.
Mold dimensions 1:10:
- diameter – 132 mm
- height – 39 mm
Tire dimensions 1:10:
- outer diameter – 92 mm
- overall width – 29 mm
- inner diameter – 47.5 mm
Mold dimensions 1:14:
- diameter – 106 mm
- height – 31 mm
Tire dimensions 1:14:
- outer diameter – 66 mm
- overall width – 21 mm
- inner diameter – 34 mm
Mold dimensions 1:25:
- diameter – 77 mm
- height – 21.5 mm
Tire dimensions 1:25:
- outer diameter – 37 mm
- overall width – 11.5 mm
- inner diameter – 19 mm
If you want a different wheel size, simply scale the mold.

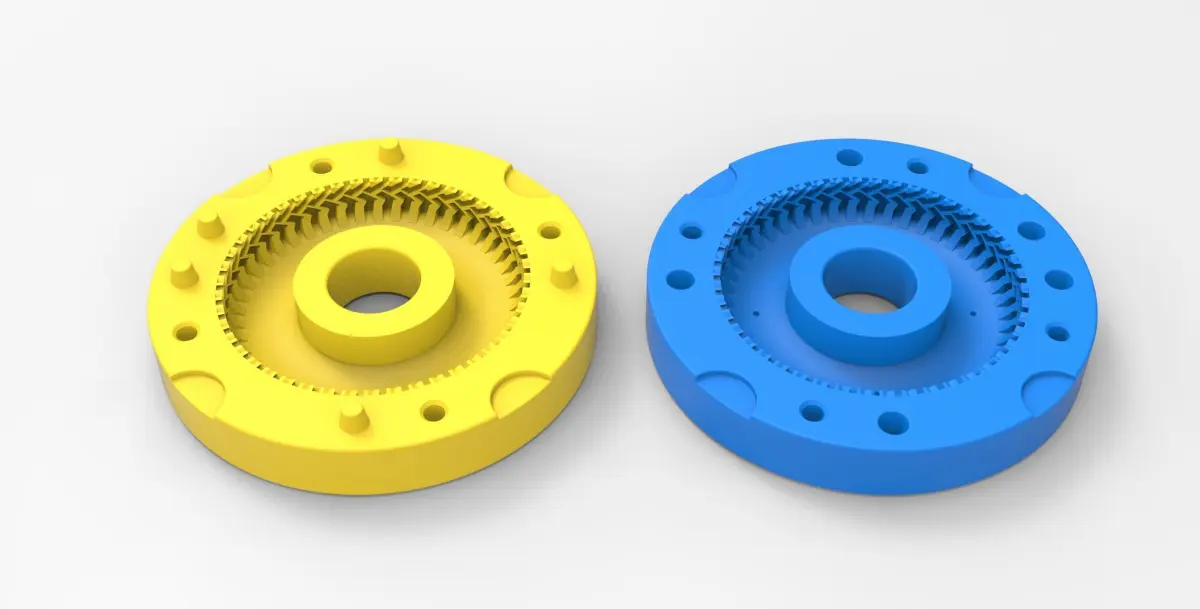

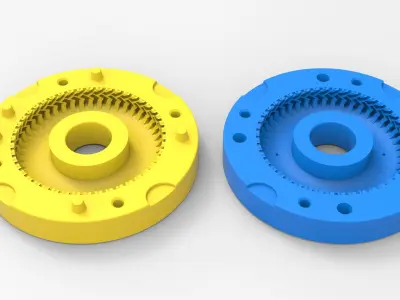

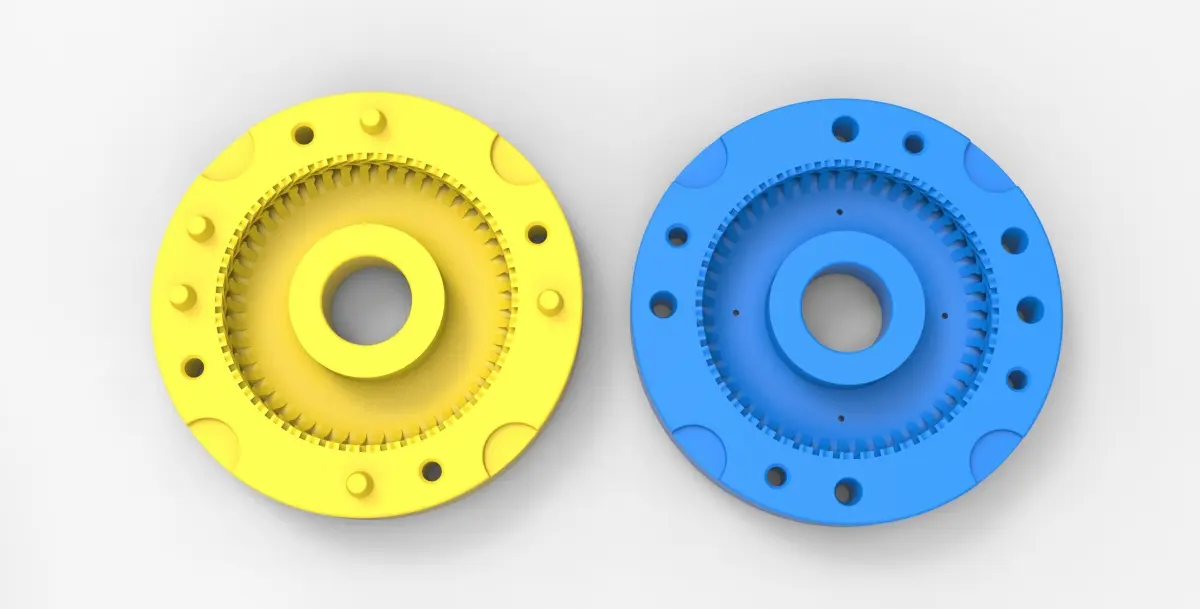

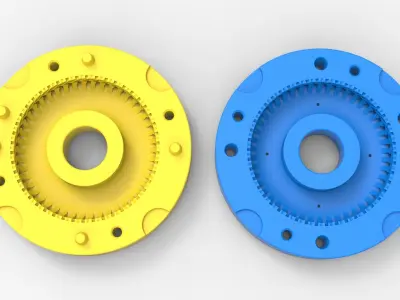

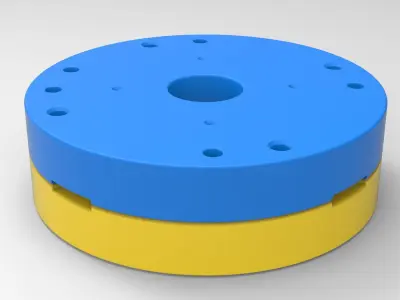

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.In the Top mold part are 4 small holes for material injection.Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.Note! Only the mold! This is not a tire!
