Rigged German IRIS-T_S air Defence Systemis is created in 3Ds Max2022, rendered in Unreal Engine 5.1.1.
Included file format: 3Ds Max, FBX, UE5.1 .uasset, SPP(4K PBR textures).

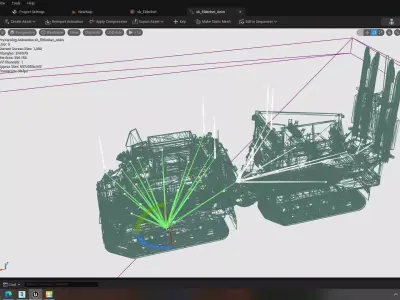

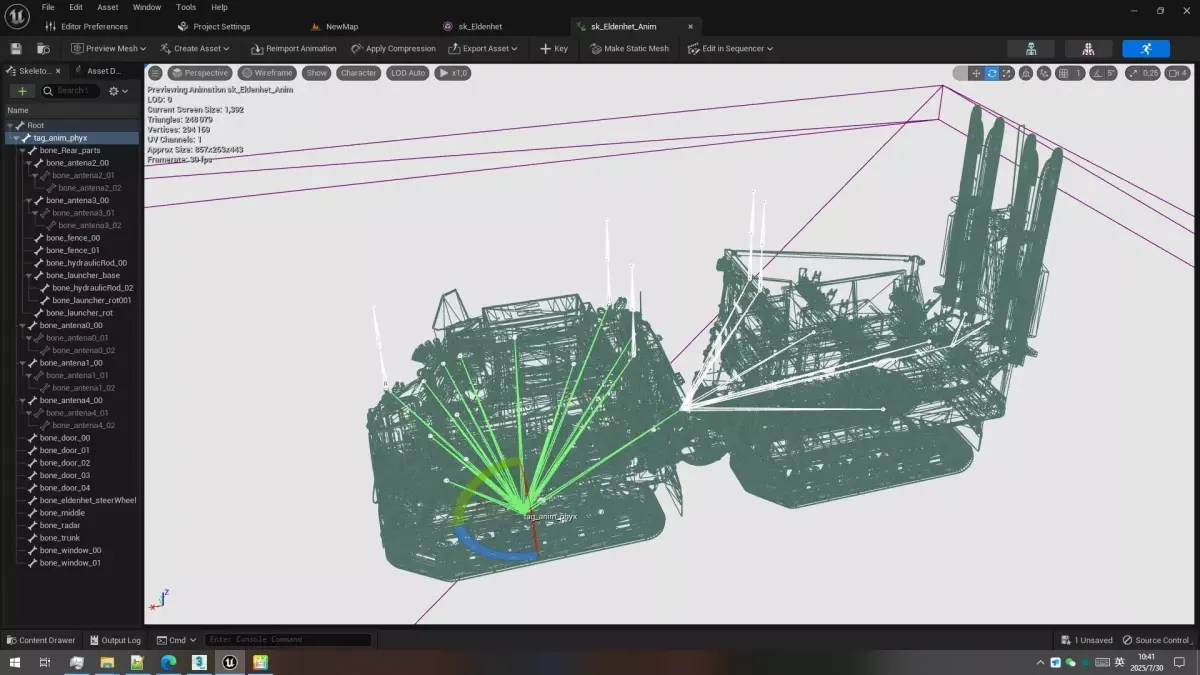

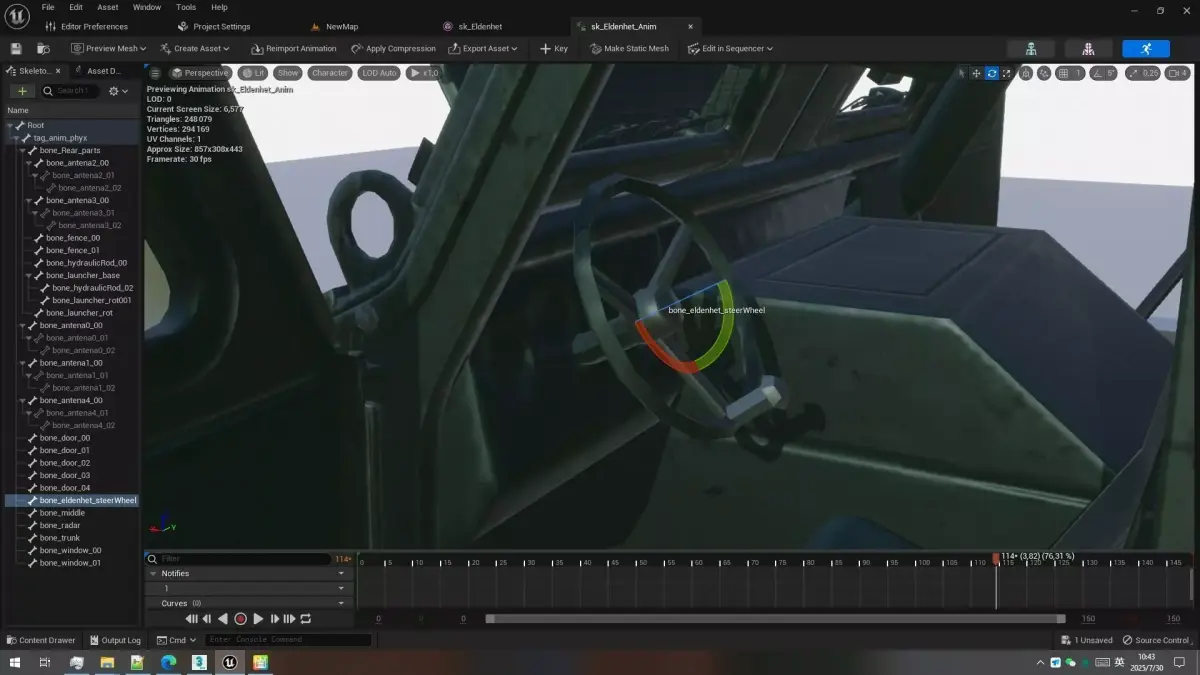

Rigged and animated all the movable parts, missile launcher, tires, doors, hydraulic rod, support rod, antena, missile launcher etc.
World scale unit: Centimeters
The IRIS-T SLM (Infra-Red Imaging System – Tail/Thrust Vector-Controlled, Surface-Launched Medium Range) is a medium-range surface-to-air missile system developed by the German company Diehl Defence.IRIS-T SLM: Key Specifications:
Missile Dimensions:
Length: 2.94 meters
Diameter: 152 millimeters
Weight: 87.4 kilograms
Performance:
Range: Up to 40 kilometers
Maximum Altitude: 20 kilometers
Speed: Over Mach 3
Warhead:
Type: High-explosive fragmentation
Weight: 11.4 kilograms
Guidance System:
Mid-Course: GPS/INS navigation with radio frequency (RF) data link for target updates
Terminal Phase: High-precision passive infrared seeker for increased countermeasure resistance and accuracy
Launcher Configuration:
Typically mounted on a MAN SX45 8x8 truck chassis
Equipped with eight missile container launchers arranged in two banks of four. Missiles are launched vertically, providing rapid 360° engagement capability.
System Components:
Launcher Vehicles: Each carrying eight ready-to-launch missiles. Multifunction Radar: For target detection and tracking; examples include the HENSOLDT TRML-4D radar. Command Post Vehicle: Equipped with Integrated Battle Management Software for fire control and mission planning.
Deployment:
Suitable for both mobile and stationary operations. Capable of rapid deployment and high firing rates with quick response times.
Operational Use:
Provides simultaneous engagement of multiple targets. Effective in all weather conditions and resistant to electronic countermeasures. Designed to intercept a wide range of aerial threats, including low-flying and maneuverable targets.
